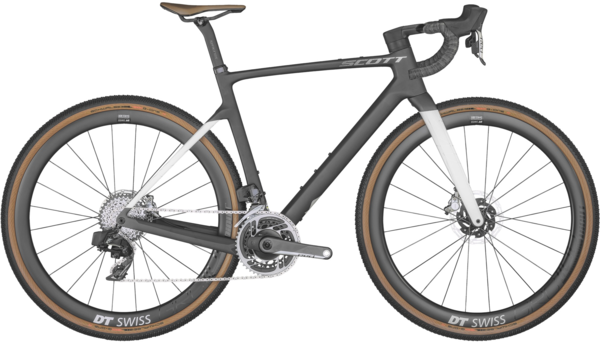

The all-new Addict Gravel Tuned is super-light, can handle rough terrain, fits chunky tires, and has enough mounts to carry all the liquids and freeze-dried chicken curry you want. What's really important, though, is what this bike allows you to do. Now, perhaps more than ever, the Addict Gravel Tuned is your ticket to adventure when you need it most. Find yourself, get lost.
- Addict Gravel Disc HMX Carbon Frame
- Addict Gravel Disc HMX Fork
- SRAM RED AXS 24 Speed
- DT Swiss GRC 1100 Disc Wheels
- Schwalbe G-ONE Race Evolution Tires
The Addict Gravel comes with well-hidden mounts for Syncros-specific fenders, making it a perfect commuter bike as well. The tire clearance with fenders is 40mm.
The new Addict Gravel comes with smart mounts for gear and accessories that make it ready for serious adventure rides. You will find a mounting option for bolt-on top-tube bags and accessories, an extra mount on the down tube for an additional bottle cage or toolbox, and two different bottle cage positions for better access when riding with a frame bag.
To guarantee a controlled and smooth riding experience, we increased the tire clearance to 45mm, lowered the seat stays, and came up with a carbon layering which guarantees both optimal pedaling efficiency and enough comfort when it gets rough.
The Creston ic SL X allows for the same integrated cable routing as you know it from the Addict RC and Foil to guide both mechanical and electronical shifting wires as well as both hydraulic hoses completely internally. Integrated cable routing not only makes for a clean and premium look, but also improves the airflow in the front and provides more space with no cable rubbing for handlebar bags.
Aero Tube Shapes
Gravel and aero can also go hand in hand. SCOTT's patented airfoil design has been applied to the bike's main tubes (down tube, head tube, seat tube, seat post, seat stays) with the goal of optimizing the airflow and reducing the overall drag without any compromise on comfort and compliance.
1- or 2-By Drivetrain
Perfectly compatible with 1 and 2-by drivetrains. For 1-by, the front derailleur plate can be replaced with a bike-specific chain guide or closing plate.
|A. Reach||374.1 mm||378.4 mm||387.1 mm||398.2 mm||406.1 mm|
|B. Stack||519.0 mm||544.4 mm||565.3 mm||589.9 mm||609.7 mm|
|C. Standover||759.0 mm||786.0 mm||807.0 mm||828.0 mm||847.0 mm|
|D. Effective Top Tube||518.0 mm||534.5 mm||554.5 mm||578.5 mm||592.5 mm|
|E. Head Tube Angle||70.0 °||70.0 °||71.0 °||71.0 °||71.0 °|
|F. Head Tube Length||95.0 mm||122.0 mm||140.0 mm||166.0 mm||187.0 mm|
|G. Seat Tube Angle||74.5 °||74.0 °||73.5 °||73.0 °||73.0 °|
|H. Seat Tube Length||477.0 mm||507.0 mm||528.0 mm||546.0 mm||566.0 mm|
|I. Bottom Bracket Height||283.0 mm||283.0 mm||283.0 mm||283.0 mm||283.0 mm|
|J. Bottom Bracket Drop||-71.0 mm||-71.0 mm||-71.0 mm||-71.0 mm||-71.0 mm|
|M. Wheelbase||1,009.4 mm||1,022.9 mm||1,029.2 mm||1,048.7 mm||1,063.5 mm|
|O. Chainstay Length||425.0 mm||425.0 mm||425.0 mm||425.0 mm||425.0 mm|
|BB To Top Tube||447.0 mm||477.0 mm||498.0 mm||516.0 mm||536.0 mm|
|Stem Length||83.0 mm||93.0 mm||103.0 mm||103.0 mm||113.0 mm|
|Frame||Addict Gravel Disc HMF Carbon, Gravel geometry / Replaceable Derailleur Hanger, Internal cable routing, Syncros fender kit ready|
|Fork||Addict Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer|
|Wheels||DT Swiss GRC1100 Disc, 24 Front / 24 Rear, Syncros SL Axle w/Removable Lever with Tool|
|Tires||Schwalbe G-ONE Bite Performance 700x45C|
|Bottom Bracket||SRAM DUB PF ROAD 86.5|
|Crankset||SRAM RED Power Meter Crankset, 46/33T|
|Shifters||SRAM RED eTap AXS HRD Shift-Brake System|
|Front Derailleur||SRAM RED eTap AXS Electronic Shift System|
|Rear Derailleur||SRAM RED eTap AXS, 24-Speed Electronic Shift System|
|Cassette/Freewheel||SRAM FORCE XG1270, 10-36|
|Brakes||SRAM RED eTap AXS HRD Shift-Brake System|
|Rotors||SRAM Centerline XR rotor 160/F and 160/R|
|Handlebars||Syncros Creston iC SL X, Carbon combo|
|Seatpost||Syncros Duncan SL Aero|
|Saddle||Syncros Tofino Regular 1.0 Cutout|
* Subject to change without notice.
|Matte Black/White / 49cm||192820605364||286451049||SCO281767729|
|Matte Black/White / 52cm||192820605371||286451052||SCO272690902|
|Matte Black/White / 54cm||192820605388||286451054||SCO276171524|
|Matte Black/White / 56cm||192820605395||286451056||SCO27790006|
|Matte Black/White / 58cm||192820605401||286451058||SCO286693918|
