Scott Foil RC 10

Scott Foil RC 10
  • Color: Purple
  • Color: Black
$6,599.99
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently out of stock. Please call one of our locations for more information.

Details

KEY FEATURES:
- FOIL Disc HMX Carbon Frame
- FOIL Disc HMX Fork
- Shimano Ultegra Di2 24 Speed
- Syncros Capital 1.0 Aero 60
- Schwalbe PRO ONE Aero TL-Tires

Aero, Lightweight, or Comfort – choose three. Welcome to the next evolution of aero bikes with the all-new Foil RC. Designed to meet the demands of WorldTour sprinters, attackers, and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Please note that bike specifications are subject to change without prior notice

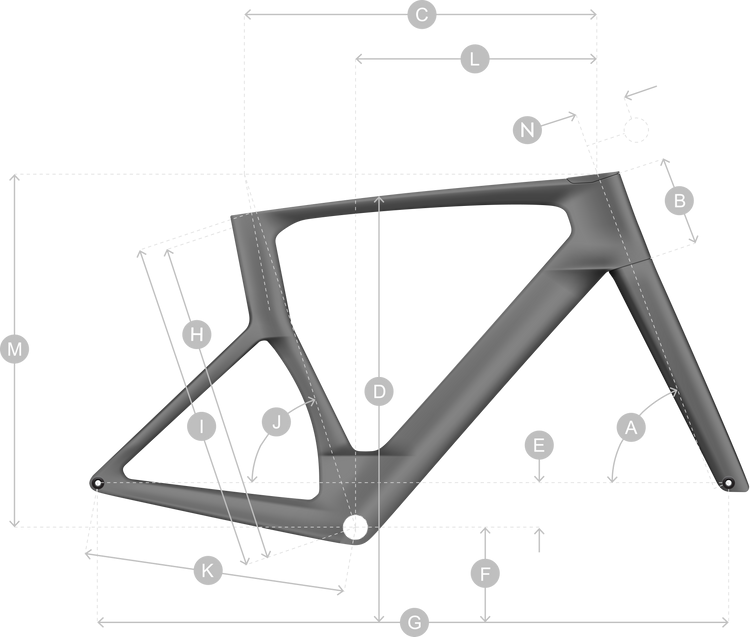

Geometry

Sizes:
XXS/47XS/49S/52M/54L/56XL/58XXL/61
A HEAD TUBE ANGLE 70.5 ° 71.0 ° 72.0 ° 72.5 ° 73.0 ° 73.3 ° 73.3 °
B HEAD TUBE LENGTH 103.0 MM 108.0 MM 121.0 MM 141.0 MM 161.0 MM 181.0 MM 199.0 MM
C TOP TUBE HORIZONTAL 520.0 MM 530.0 MM 540.0 MM 550.0 MM 565.0 MM 580.0 MM 600.0 MM
D STANDOVER HEIGHT 746.4 MM 759.6 MM 779.4 MM 801.0 MM 820.0 MM 838.0 MM 853.3 MM
E BB OFFSET -70.0 MM -70.0 MM -70.0 MM -70.0 MM -70.0 MM -70.0 MM -70.0 MM
F BB HEIGHT 274.5 MM 274.5 MM 274.5 MM 274.5 MM 274.5 MM 274.5 MM 274.5 MM
G WHEEL BASE 987.7 MM 993.7 MM 990.7 MM 992.6 MM 999.9 MM 1,008.6 MM 1,022.7 MM
H BB CENTER TO TOPTUBE CENTER 450.8 MM 480.9 MM 501.4 MM 521.6 MM 541.4 MM 558.8 MM 571.4 MM
I BB CENTER TO TOP OF SEATTUBE 451.8 MM 481.9 MM 502.4 MM 522.6 MM 542.4 MM 559.8 MM 572.4 MM
J SEAT ANGLE 74.5 ° 74.5 ° 74.0 ° 73.6 ° 73.3 ° 73.0 ° 72.5 °
K CHAINSTAY 412.0 MM 412.0 MM 412.0 MM 412.0 MM 412.0 MM 412.0 MM 412.0 MM
L REACH 380.0 MM 388.0 MM 389.0 MM 389.0 MM 394.5 MM 400.0 MM 409.0 MM
M STACK 505.0 MM 511.0 MM 527.0 MM 548.0 MM 568.0 MM 589.0 MM 606.0 MM
N STEM LENGTH 80.0 MM 90.0 MM 100.0 MM 110.0 MM 110.0 MM 120.0 MM 120.0 MM

Specs

Frame FOIL RC Disc HMX Road Race geometry / Replaceable Derailleur Hanger Internal cable routing
Fork FOIL Disc HMX 1" Excentric Carbon steerer
Wheels Syncros Capital 1.0 Aero 60mm 24 Front / 24 Rear Syncros SL Axle / Removable Lever with Tool
Tires Schwalbe PRO ONE Aero TL-Easy Fold 700x28C
Bottom Bracket Shimano SM-BB71-41B
Crankset Shimano Ultegra FC-R8100 Hollowtech II 52x36 T
Shifters Shimano Ultegra Di2 ST-R8170 24 Speed Electronic Shift System
Front Derailleur Shimano Ultegra Di2 FD-R8150 Electronic Shift System
Rear Derailleur Shimano Ultegra Di2 RD-R8150 24 Speed Electronic Shift System
Cassette/Freewheel Shimano Ultegra CS-R8100-12 11-30
Chain Shimano CN-M8100-12
Brakes Shimano BR-R8170 Hyd.Disc
Rotors Shimano RT-CL800 rotor 160/F and 160/R
Handlebars Syncros Creston 1.0 Aero
Stem Syncros RR 1.5 Aero
Headset Acros AIF-1138
Seatpost Syncros Duncan SL Aero CFT
Saddle Syncros Belcarra V-Concept 2.0

* Subject to change without notice.

Part Numbers

Option UPC MPN
Purple / 47cm 192820869896 293181047
Purple / 49cm 192820869902 293181049
Purple / 52cm 192820869919 293181052
Purple / 54cm 192820869926 293181054
Purple / 56cm 192820869933 293181056
Purple / 58cm 192820869940 293181058
Purple / 61cm 192820869957 293181061
Black / 47cm 192820869810 293180047
Black / 49cm 192820869827 293180049
Black / 52cm 192820869834 293180052
Black / 54cm 192820869841 293180054
Black / 56cm 192820869858 293180056
Black / 58cm 192820869865 293180058
Black / 61cm 192820869872 293180061
