Details
KEY FEATURES:
- FOIL Disc HMX Carbon Frame
- FOIL Disc HMX Fork
- Shimano 105 Di2 24 Speed
- Syncros Capital 1.0 Aero 60
- Schwalbe PRO ONE Aero TL-Tires
Aero, Lightweight, or Comfort – choose three. Welcome to the next evolution of aero bikes with the all-new Foil RC. Designed to meet the demands of WorldTour sprinters, attackers, and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.
Please note that bike specifications are subject to change without prior notice

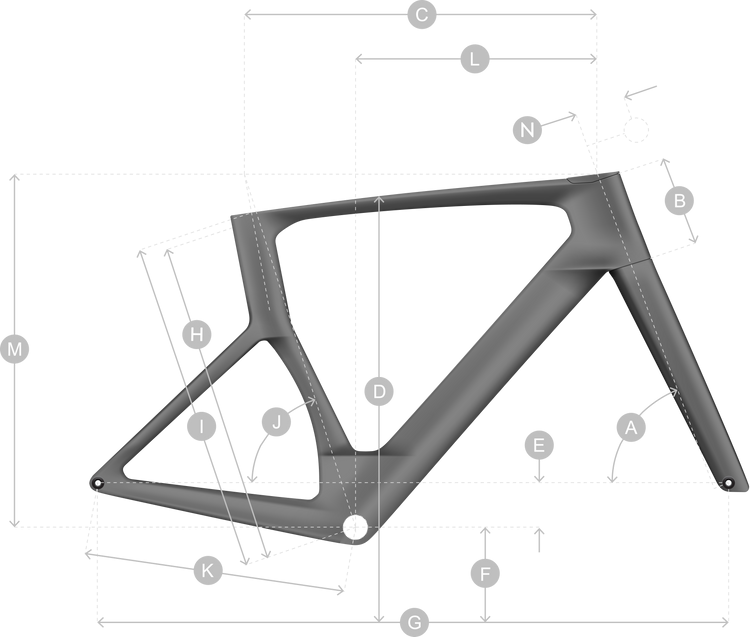

XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | ||
---|---|---|---|---|---|---|---|---|
A | HEAD TUBE ANGLE | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° |
B | HEAD TUBE LENGTH | 103.0 MM | 108.0 MM | 121.0 MM | 141.0 MM | 161.0 MM | 181.0 MM | 199.0 MM |
C | TOP TUBE HORIZONTAL | 520.0 MM | 530.0 MM | 540.0 MM | 550.0 MM | 565.0 MM | 580.0 MM | 600.0 MM |
D | STANDOVER HEIGHT | 746.4 MM | 759.6 MM | 779.4 MM | 801.0 MM | 820.0 MM | 838.0 MM | 853.3 MM |
E | BB OFFSET | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM |
F | BB HEIGHT | 274.5 MM | 274.5 MM | 274.5 MM | 274.5 MM | 274.5 MM | 274.5 MM | 274.5 MM |
G | WHEEL BASE | 987.7 MM | 993.7 MM | 990.7 MM | 992.6 MM | 999.9 MM | 1,008.6 MM | 1,022.7 MM |
H | BB CENTER TO TOPTUBE CENTER | 450.8 MM | 480.9 MM | 501.4 MM | 521.6 MM | 541.4 MM | 558.8 MM | 571.4 MM |
I | BB CENTER TO TOP OF SEATTUBE | 451.8 MM | 481.9 MM | 502.4 MM | 522.6 MM | 542.4 MM | 559.8 MM | 572.4 MM |
J | SEAT ANGLE | 74.5 ° | 74.5 ° | 74.0 ° | 73.6 ° | 73.3 ° | 73.0 ° | 72.5 ° |
K | CHAINSTAY | 412.0 MM | 412.0 MM | 412.0 MM | 412.0 MM | 412.0 MM | 412.0 MM | 412.0 MM |
L | REACH | 380.0 MM | 388.0 MM | 389.0 MM | 389.0 MM | 394.5 MM | 400.0 MM | 409.0 MM |
M | STACK | 505.0 MM | 511.0 MM | 527.0 MM | 548.0 MM | 568.0 MM | 589.0 MM | 606.0 MM |
N | STEM LENGTH | 80.0 MM | 90.0 MM | 100.0 MM | 110.0 MM | 110.0 MM | 120.0 MM | 120.0 MM |
Specs
Frame | FOIL RC Disc HMX Road Race geometry / Replaceable Derailleur Hanger Internal cable routing |
---|---|
Fork | FOIL Disc HMX 1" Excentric Carbon steerer |
Wheels | Syncros Capital 1.0 Aero 60mm 24 Front / 24 Rear Syncros SL Axle / Removable Lever with Tool |
Tires | Schwalbe PRO ONE Aero TL-Easy Fold 700x28C |
Bottom Bracket | Shimano BB-RS500-PB |
Crankset | Shimano 105 FC-R7100 Hollowtech II 52x36 T |
Shifters | Shimano 105 Di2 ST-R7170 24 Speed Electronic Shift System |
Front Derailleur | Shimano 105 Di2 FD-R7150 Electronic Shift System |
Rear Derailleur | Shimano 105 Di2 RD-R7150 24 Speed Electronic Shift System |
Cassette/Freewheel | Shimano CS-R7100 11-34 |
Chain | Shimano CN-M6100-12 |
Brakes | Shimano BR-R7170 Hyd.Disc |
Rotors | Shimano SM-RT70 CL rotor 160/F and 160/R |
Handlebars | Syncros Creston 2.0 Aero |
Stem | Syncros RR 1.5 Aero |
Headset | Acros AIF-1138 |
Seatpost | Syncros Duncan SL Aero CFT |
Saddle | Syncros Belcarra V2.0 NEO Cut Out |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black Pearl / 47cm | 192820869971 | 293182047 | |
Black Pearl / 49cm | 192820869988 | 293182049 | |
Black Pearl / 52cm | 192820869995 | 293182052 | |
Black Pearl / 54cm | 192820870007 | 293182054 | SCO207553714 |
Black Pearl / 56cm | 192820870014 | 293182056 | SCO206278226 |
Black Pearl / 58cm | 192820870021 | 293182058 | |
Black Pearl / 61cm | 192820870038 | 293182061 |
