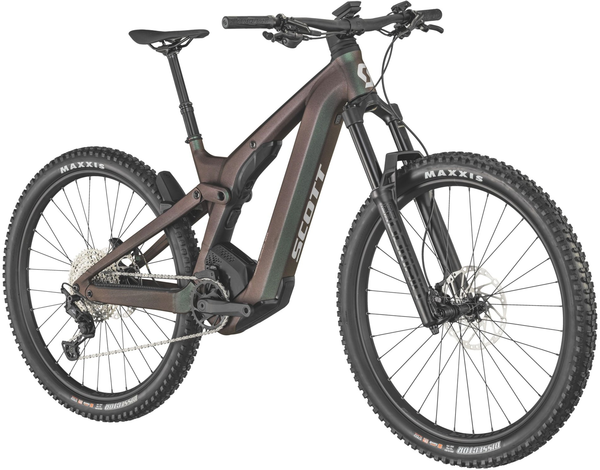

Scott Patron eRIDE 920

Scott Patron eRIDE 920
This item is currently not available.

Details

KEY FEATURES:
- Patron eRIDE Alloy Frame
- RockShox Domain 160mm Fork
- FOX Float EVOL eRIDE, 160mm, TwinLoc
- Shimano XT-Deore 12 Speed
- Bosch CX, 750Wh PowerTube / SmartSystem
- SRAM DB8 4 Piston Disc

The Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE—boss the trails.

*Please note that bike specifications are subject to change without prior notice

Geometry

Geometry Chart:
Frame SizeSmallMediumLargeX-Large
A — Head Tube Angle 64.5° 65° 65° 65°
B — Head Tube Length (mm) 120 125 135 145
C — Top Tube Horizontal (mm) 579.4 595 625.6 656.4
D — Standover Height (mm) 766 766 766 766
E — Bottom Bracket Offset (mm) -30 -30 -30 -30
F — Bottom Bracket Height (mm) 347 347 347 347
G — Wheelbase (mm) 1221.7 1231.7 1263.7 1295.4
H — BB Center to Toptube Center (mm)
I — BB Center to Top of Seattube (mm) 410.5 440.5 470.4 500.4
J — Seat Angle 77° 76.9° 76.9° 76.8°
K — Chainstay (mm) 454 454 454 454
L — Reach (mm) 432.7 445.8 473.6 501.2
M — Stack (mm) 634.8 642.2 651.3 660.4
N — Stem Length (mm) 50 50 60 60
O — Trail (mm) 133.3 129.5 129.5 129.5
P — Fork Length (mm) 567.1 567.1 567.1 567.1
Q — Maximum Seatpost Insertion (mm) 245 265 300 320
R — Crank Length (mm) 165 165 165 165

Specs

Frame Alloy Frame & Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable
Fork RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
Rear Shock FOX Float EVOL eRIDE Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 160mm / 205x60mm
Rims Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
Hubs Front: Formula CL-811 / 15x110mm
Rear: Formula ECT-1481 / Boost 148x12mm
Spokes Stainless Black
Tires Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
Crankset FSA CK-745 165mm / 34T
Chainrings FSA W0138+WB499 / 34T / Steel
Shifters Shimano SL-M6100
Rear Derailleur Shimano XT / 12 Speed
Cassette/Freewheel Shimano CS-M6100 / 10-51 T
Chain Shimano CN-M6100
Brakes SRAM DB8 4 Piston Disc
Rotors Centerline CL Rotors 200mm F&R
Handlebars Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Endurance lock-on grips
Stem Syncros AM2.0 / 6061 Alloy 31.8mm / 4° / 1 1/8"
Headset Acros / 1.8" ZS66 OD74 / integr. Cable
Seatpost Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
Saddle Syncros Tofino 2.5 Regular
Pedals Sold separately
Accessories & Extras Lights: Syncros integrated rear fender light Front Light Cable pre-installed
Motor Bosch Performance CX EU: 25kmh / INT: 20mph
Battery PowerTube 750Wh
Controller/Display SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes / Bosch LED Remote & Kiox 300
Charger 4A Charger

* Subject to change without notice.
