Scott Plasma RC Ultimate
Details

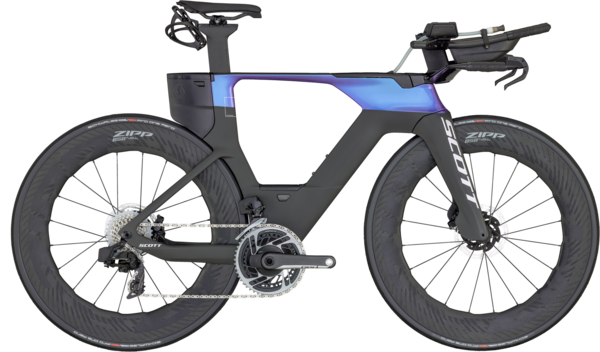

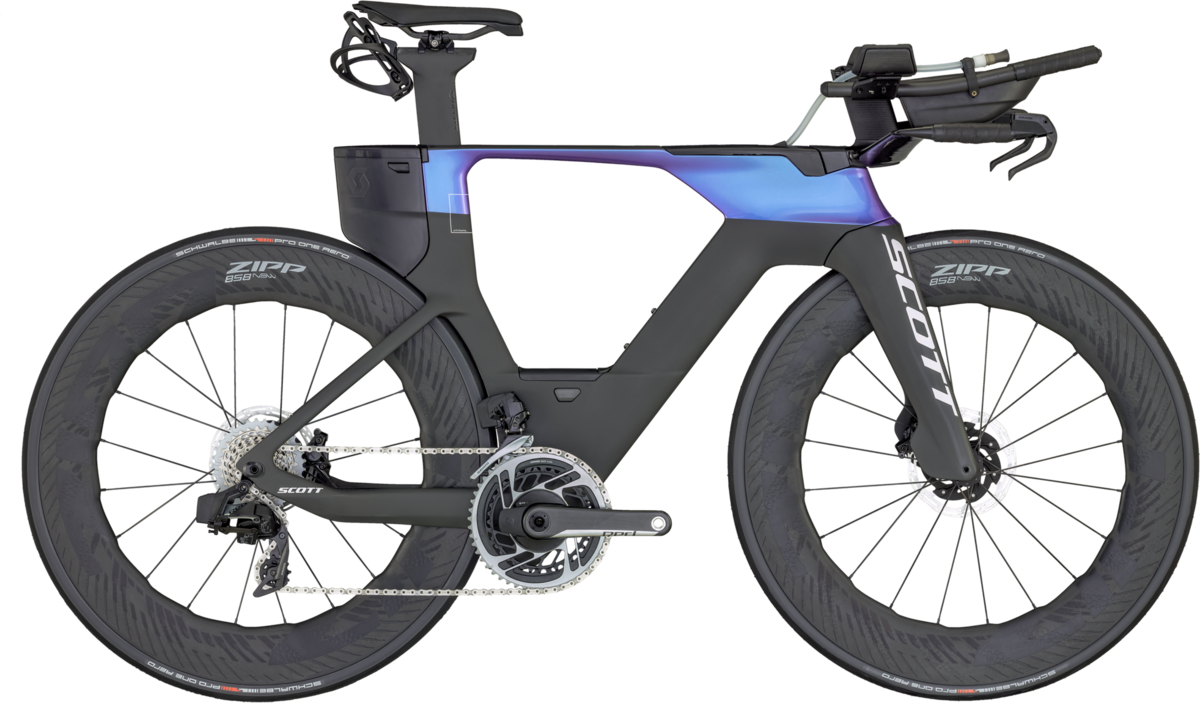

With the SCOTT Plasma RC Ultimate, we really decided to flex our "Aero Muscles". This Triathlon-specific bicycle features fully integrated cables, a hydration system and storage boxes. We've also made it versatile, making sure that anyone can find their most efficient cockpit position on the bike. If you thought the last Plasma was the fastest in the world (it was) then you ain't seen nuthin' yet.
Please note that bike specifications are subject to change without prior notice
Key Features
- Plasma 6 Disc Carbon, HMX Frame
- Plasma 6 Disc HMX Fork
- SRAM RED eTap AXS, 24 Speed
- Zipp 858 NSW Carbon TL Disc
- Schwalbe PRO ONE Aero TL Tires
Max. System Weight 120 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
| Frame Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Head tube angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head tube length | 71.5 mm | 71.5 mm | 87.0 mm | 108.0 mm | 124.0 mm |
| Head tube length (comparable) | 106.5 mm | 106.5 mm | 122.0 mm | 143.0 mm | 159.0 mm |
| Top tube horizontal | 509.3 mm | 529.3 mm | 555.8 mm | 582.9 mm | 609.5 mm |
| Standover height | 746.0 mm | 746.0 mm | 795.8 mm | 815.8 mm | 831.1 mm |
| BB offset | -75.0 mm | -75.0 mm | -75.0 mm | -75.0 mm | -75.0 mm |
| BB height | 261.0 mm | 261.0 mm | 261.0 mm | 261.0 mm | 261.0 mm |
| Wheel base | 962.0 mm | 982.0 mm | 1,011.7 mm | 1,043.0 mm | 1,072.8 mm |
| BB center to toptube center | 493.0 mm | 493.0 mm | 542.4 mm | 562.3 mm | 577.5 mm |
| BB center to top of seattube | 503.0 mm | 503.0 mm | 552.4 mm | 572.3 mm | 587.5 mm |
| Seat angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Chainstay | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm |
| Reach | 372.5 mm | 392.5 mm | 417.5 mm | 442.5 mm | 467.5 mm |
| Stack | 520.0 mm | 520.0 mm | 535.0 mm | 555.0 mm | 570.0 mm |
| Chainstay MIN | 403.0 mm | 403.0 mm | 403.0 mm | 403.0 mm | 403.0 mm |
| Chainstay MAX | 413.0 mm | 413.0 mm | 413.0 mm | 413.0 mm | 413.0 mm |
| Pads stack LOW | 540.0 mm | 540.0 mm | 555.0 mm | 575.0 mm | 590.0 mm |
| Pads stack HIGH | 660.0 mm | 660.0 mm | 675.0 mm | 695.0 mm | 710.0 mm |
| Pads reach HIGH/SHORT | 362.2 mm | 382.2 mm | 407.2 mm | 432.2 mm | 457.2 mm |
| Pads reach LOW/LONG | 500.0 mm | 520.0 mm | 545.0 mm | 570.0 mm | 595.0 mm |
Specs
| Frame | Plasma 6 Disc / HMX TRI Geometry / Plasma HMX seatpost / Replaceable Derailleur Hanger |
|---|---|
| Fork | Plasma 6 Disc 1 1/4"- 1 1/2" Carbon / integrated |
| Wheels | Zipp 858 NSW Carbon tubeless disc-brake Syncros SL Axle / Removable Lever with Tool |
| Tires | Schwalbe PRO ONE Aero TL-Easy Fold 700x28C |
| Bottom Bracket | SRAM DUB PF ROAD 86.5 |
| Crankset | SRAM RED AXS Power meter 50/37 T |
| Shifters |
SRAM eTap AXS Clicks SRAM eTap AXS Wireless Blips |
| Front Derailleur | SRAM RED eTap AXS Electronic Shift System |
| Rear Derailleur | SRAM RED eTap AXS 24 Speed Electronic Shift System |
| Cassette/Freewheel | SRAM RED XG 1290 10-28 |
| Chain | SRAM RED |
| Brakes | SRAM S900 HRD flat mount |
| Rotors | SRAM CenterLine XR rotor 160/F and 160/R |
| Brake Levers | SRAM S-900 Aero HRD |
| Handlebars | Syncros Creston iC TRI 400mm Syncros E1 Carbon extension |
| Headset | Syncros Integrated 1 1/4"- 1 1/2" drop-in headset |
| Seatpost | Syncros Plasma 6 HMX with Ritchey WCS clamp adjustable head |
| Saddle | Syncros Belcarra 1.0 TRI |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Carbon Black/Cosmic Purple / X-Small / 700c | 192820869537 | 293176049 |
| Carbon Black/Cosmic Purple / Small / 700c | 192820869544 | 293176052 |
| Carbon Black/Cosmic Purple / Medium / 700c | 192820869551 | 293176054 |
| Carbon Black/Cosmic Purple / Large / 700c | 192820869568 | 293176056 |
| Carbon Black/Cosmic Purple / X-Large / 700c | 192820869575 | 293176058 |
