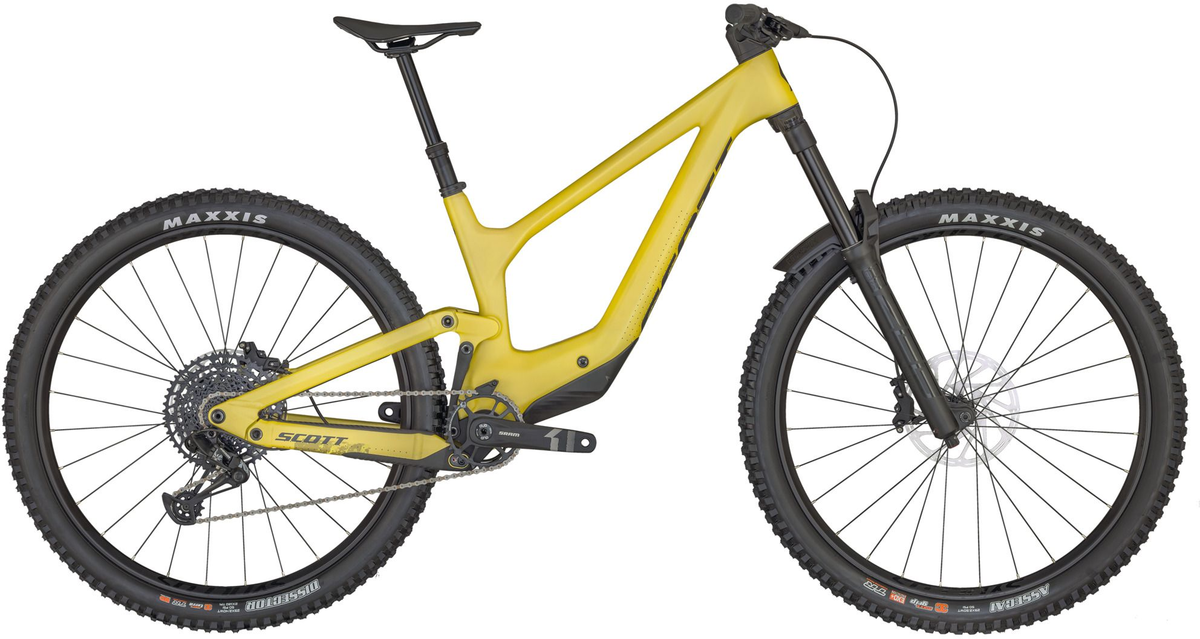

Scott Ransom 920

Scott Ransom 920
  • Color: Yellow
$5,999.99
Color: Yellow
Size: Select size
Please select options Unavailable
Sorry, this item is currently out of stock. Please call one of our locations for more information.

Details

KEY FEATURES:
- Ransom Carbon HMF-Alloy Frame
- RockShox Zeb Select+ 170mm Fork
- FOX FLOAT X Nude, TracLoc, 170mm
- SRAM NX Eagle 12 Speed
- SRAM DB8 4 Piston Disc Brakes
- Maxxis EXO+/DD Tires

Introducing the all-new SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take "no" for an answer. Don’t hold yourself hostage, ride Ransom.

Please note that bike specifications are subject to change

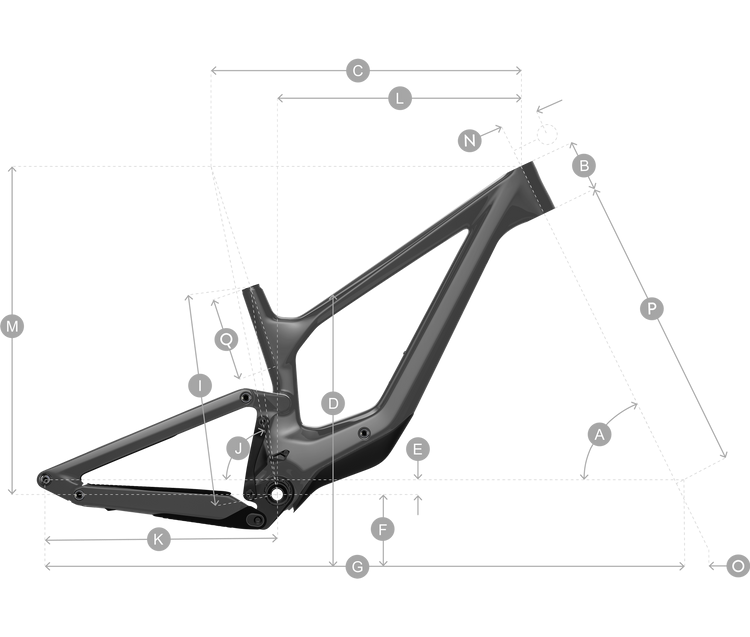

Geometry

Sizes:
SMLXL
A HEAD TUBE ANGLE 63.8 ° 63.8 ° 63.8 ° 63.8 °
B HEAD TUBE LENGTH 95.0 MM 100.0 MM 115.0 MM 125.0 MM
C TOP TUBE HORIZONTAL 569.9 MM 598.7 MM 624.4 MM 649.1 MM
D STANDOVER HEIGHT 719.2 MM 725.4 MM 736.7 MM 755.3 MM
E BB OFFSET -25.0 MM -25.0 MM -25.0 MM -25.0 MM
F BB HEIGHT 350.0 MM 350.0 MM 350.0 MM 350.0 MM
G WHEEL BASE 1,206.6 MM 1,238.8 MM 1,270.4 MM 1,299.8 MM
H BB CENTER TO TOPTUBE CENTER
I BB CENTER TO TOP OF SEATTUBE 380.0 MM 410.0 MM 440.0 MM 470.0 MM
J SEAT ANGLE 77.0 ° 77.2 ° 77.4 ° 77.6 °
K CHAINSTAY 440.0 MM 440.0 MM 440.0 MM 440.0 MM
L REACH 428.0 MM 458.0 MM 483.0 MM 508.0 MM
M STACK 614.8 MM 619.3 MM 632.8 MM 641.7 MM
N STEM LENGTH 40.0 MM 40.0 MM 40.0 MM 40.0 MM
0 TRAIL 135.5 MM 135.5 MM 135.5 MM 135.5 MM
P FORK LENGTH 581.0 MM 581.0 MM 581.0 MM 581.0 MM
Q MAXIMUM SEATPOST INSERTION 184.5 MM 214.6 MM 244.7 MM 274.6 MM
R CRANK LENGTH 165.0 MM 170.0 MM 170.0 MM 170.0 MM

Specs

Frame Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension Technology 6 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready
Fork RockShox Zeb Select+ Charger 3 HSC - LSC - LSR adjustable / 15x110mm Maxle stealth axle 42mm offset / Tapered Steerer / 170mm travel
Rear Shock FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 170-130-Climb / T205X65mm / Bearing Hardware
Rims/Wheels Syncros Revelstoke 2.5 6 Bolt F: 15x110mm R: 12x148mm Boost 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool
Tires Front: Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp
Rear: Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
Crankset SRAM X1 1000 Eagle DUB Boost 32T / Chainline 55mm
Bottom Bracket SRAM DUB PF integrated / shell 41x92mm
Chain SRAM CN SX Eagle
Rear Derailleur SRAM NX Eagle 12 Speed
Cassette/Rear Cogs SRAM NX / PG1210 / 11-50 T
Shifters SRAM SX Eagle Trigger
Handlebars Syncros Hixon 2.0 Alloy 6061 D.B. Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips
Stem Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 40mm
Brakes SRAM DB8 4 Piston Disc
Saddle Syncros Tofino 2.0 Crmo Rails
Seat Post Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
Accessories & Extras RS Zeb Fender, Syncros IS Matchbox Kit / Syncros Multi-tool Matchbox 8

* Subject to change without notice.

Part Numbers

Option UPC MPN
Yellow / Small 192820861272 293026006
Yellow / Medium 192820861289 293026008
Yellow / Large 192820861296 293026010
Yellow / X-Large 192820861302 293026012
