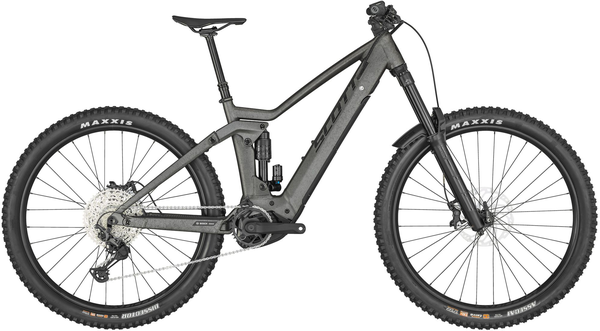

Scott Ransom eRIDE 920
$5,999.99
Details
Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE—more ups, more down, more hoots, more hollers, more Ransom.
*Please note that bike specifications are subject to change without prior notice
KEY FEATURES
- Ransom eRIDE Alloy Frame
- RockShox ZEB 180mm Fork
- FOX Float X2 / Air, LSC-LSR w/2-Pos. lever
- Shimano XT-Deore 12 Speed
- Bosch CX, PowerTube 625Wh
- Shimano SLX 4 Piston Disc Brakes

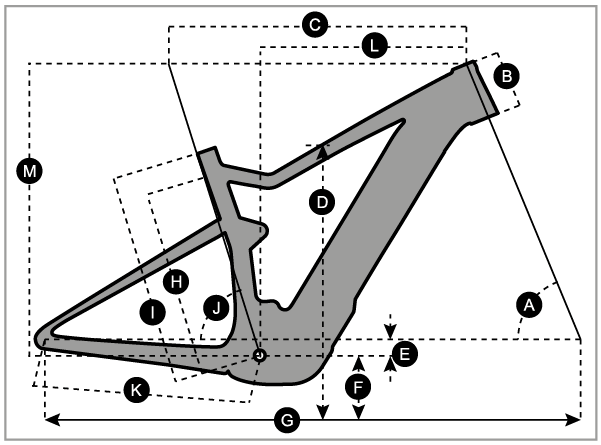

| Frame Size | Small / 700 | Medium / 700 | Large / 700 | X-Large / 700 |
|---|---|---|---|---|
| A — Head Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° |
| B — Head Tube Length (mm) | 120 | 120 | 125 | 125 |
| C — Top Tube Horizontal (mm) | 569.5 | 597 | 630.5 | 662.5 |
| D — Standover Height (mm) | 753 | 758 | 780 | 790 |
| E — Bottom Bracket Offset (mm) | -13 | -13 | -13 | -13 |
| F — Bottom Bracket Height (mm) | 348.5 | 348.5 | 348.5 | 348.5 |
| G — Wheelbase (mm) | 1228.4 | 1253.4 | 1285.6 | 1315.6 |
| H — BB Center to Toptube Center (mm) | ||||
| I — BB Center to Top of Seattube (mm) | 420 | 440 | 470 | 500 |
| J — Seat Angle | 77.2° | 77° | 76.8° | 76.6° |
| K — Chainstay (mm) | 462.9 | 462.9 | 462.9 | 462.9 |
| L — Reach (mm) | 422.3 | 447.3 | 477.4 | 507.3 |
| M — Stack (mm) | 639.7 | 639.7 | 643.5 | 643.5 |
| N — Stem Length (mm) | 50 | 50 | 50 | 50 |
| O — Trail (mm) | 125.4 | 125.4 | 125.4 | 125.4 |
| Frame Size | Small / 900 | Medium / 900 | Large / 900 | X-Large / 900 |
|---|---|---|---|---|
| A — Head Tube Angle | 64° | 64° | 64° | 64° |
| B — Head Tube Length (mm) | 120 | 120 | 125 | 125 |
| C — Top Tube Horizontal (mm) | 568 | 595.5 | 628.8 | 660.7 |
| D — Standover Height (mm) | 762 | 766 | 790 | 800 |
| E — Bottom Bracket Offset (mm) | -22 | -22 | -22 | -22 |
| F — Bottom Bracket Height (mm) | 353.5 | 353.5 | 353.5 | 353.5 |
| G — Wheelbase (mm) | 1230.3 | 1255.3 | 1287.5 | 1317.5 |
| H — BB Center to Toptube Center (mm) | ||||
| I — BB Center to Top of Seattube (mm) | 420 | 440 | 470 | 500 |
| J — Seat Angle | 76.5° | 76.3° | 76.1° | 75.9° |
| K — Chainstay (mm) | 465 | 465 | 465 | 465 |
| L — Reach (mm) | 415 | 440 | 470 | 500 |
| M — Stack (mm) | 644.4 | 644.4 | 649 | 649 |
| N — Stem Length (mm) | 50 | 50 | 50 | 50 |
| O — Trail (mm) | 136.4 | 136.4 | 136.4 | 136.4 |
Specs
| Frame | Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 180mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2, Central Kickstand Mount |
|---|---|
| Fork | RockShox ZEB / Air 15x110mm QR axle tapered steerer / Reb. Adj. / 180mm travel |
| Rear Shock | FOX Float X2 Performance / Air LSC, LSR w/2-Pos. lever |
| Rims | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
| Hubs |
Front: Shimano HB-MT410-B CL / 15x110mm Rear: Shimano FH-MT410-B CL / Boost 12x148mm |
| Spokes | Stainless Black |
| Tires |
Front: Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra Rear: Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
| Crankset | FSA CK-745 165mm / 34T |
| Chainrings | FSA WB604 / 34T / DM / Steel |
| Shifters | Shimano SL-M6100 |
| Rear Derailleur | Shimano XT / 12 Speed |
| Cassette/Freewheel | Shimano CS-M6100 / 10-51 T |
| Chain | Shimano CN-M6100 |
| Brakes | Shimano BR-M7120 4 Piston |
| Rotors | Front&Rear: SM-RT70 CL 203mm |
| Handlebars | Syncros Hixon 2.0 Rise / Alloy 6061D.B. 20mm rise / 8° / 800mm Syncros Pro lock-on grips |
| Stem | Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
| Headset | Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm |
| Seatpost | Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
| Saddle | Syncros Tofino 2.0 Regular CRMO rails |
| Pedals | Sold separately |
| Accessories & Extras |
Lights: Bosch Light Cable pre-installed F&R RockShox Fork Fender |
| Motor | Bosch Performance CX EU: 25kmh / INT: 20mph |
| Battery | PowerTube 625Wh |
| Controller/Display | Bosch Purion |
| Charger | 4A Charger |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey / Small | 192820749624 | 290568006 | SCO27688824S |
| Grey / Medium | 192820749631 | 290568008 | SCO27820742M |
| Grey / Large | 192820749648 | 290568010 | SCO2714334L |
| Grey / X-Large | 192820749655 | 290568012 | SCO28225237L |
