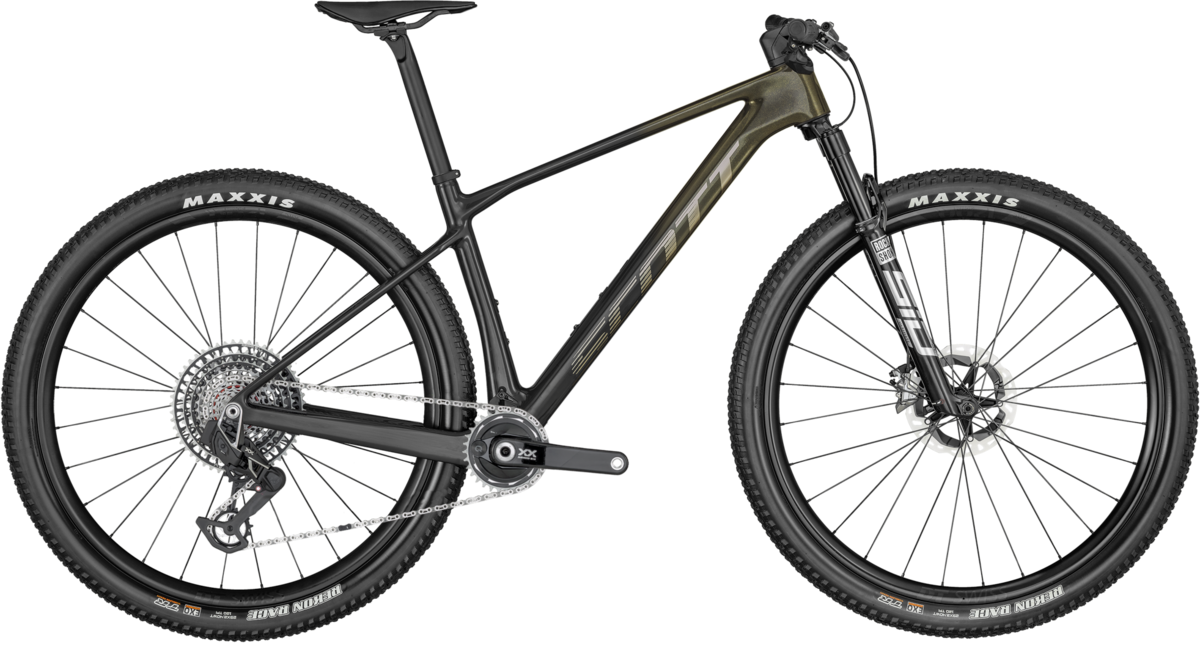

Scott Scale RC World Cup EVO TR
Details
The Scale RC World Cup EVO is the perfect blend of stiffness, lightweight, and 30 years of carbon expertise. These characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor. Please note that bike specifications are subject to change without prior notice
Key Features
- Scale Carbon HMX Frame
- RockShox SID SL Ultimate RD3 100mm
- RideLoc 2 / 3-Position Remote
- SRAM XX SL AXS TR, PWR Meter
- Shimano XTR Disc Brakes
- DT Swiss XRC1200 Carbon Wheelset
- Maxxis Rekon Race Foldable Tires
- Syncros Carbon Parts
Max. System Weight 128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Head tube angle | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° |
| Head tube length | 90.0 mm | 95.0 mm | 110.0 mm | 120.0 mm |
| Top tube horizontal | 575.0 mm | 600.2 mm | 626.0 mm | 656.5 mm |
| Standover height | 752.0 mm | 781.0 mm | 800.0 mm | 835.1 mm |
| BB offset | -62.0 mm | -62.0 mm | -62.0 mm | -62.0 mm |
| BB height | 313.0 mm | 313.0 mm | 313.0 mm | 313.0 mm |
| Wheel base | 1,105.4 mm | 1,131.1 mm | 1,158.0 mm | 1,189.4 mm |
| BB center to top of seattube | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm |
| Seat angle | 75.4 ° | 75.4 ° | 75.3 ° | 75.3 ° |
| Chainstay | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm |
| Reach | 418.5 mm | 442.3 mm | 463.6 mm | 491.2 mm |
| Stack | 600.3 mm | 604.9 mm | 618.9 mm | 628.1 mm |
| Stem length | 50.0 mm | 60.0 mm | 70.0 mm | 80.0 mm |
| Trail | 105.1 mm | 105.0 mm | 105.0 mm | 105.0 mm |
Specs
| Frame | Scale Carbon HMX Adjustable head angle / Syncros Cable Integration System Advanced Shock & Standing Damping System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | RockShox SID SL Ultimate RD3 Air custom Race Day Charger Damper 3-Modes 15x110mm Maxle Stealth / 44mm offset /Tapered steerer Lockout / Reb. Adj. / 100mm travel |
| Wheels | DT Swiss XRC1200 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready Carbon rims 28H / XD Driver Syncros SL Axle w/Removable Lever with 6mm Allen T30 and T25 Tools |
| Tires | Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Crankset | SRAM XX SL Eagle AXS Transmission Carbon crankarm / Spider Power Meter DUB / 55mm CL / 32T |
| Shifters | SRAM AXS Rocker Controller |
| Rear Derailleur | SRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Cassette/Freewheel | SRAM XX SL Eagle XS 1299 Transmission 10-52 |
| Chain | SRAM CN XX SL Eagle Transmission |
| Brakes | Shimano XTR M9100 Disc |
| Rotors | Shimano RT-MT900 CL / 180/F and 160/R |
| Handlebars | Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Seatpost | Syncros Duncan 1.0 Carbon 10mm offset / 31.6x400mm |
| Saddle | Syncros Belcarra 1.0 Regular 1.0 Carbon rails |
| Pedals | Sold Separately |
| Accessories & Extras |
SCOTT RideLoc 2 Technology 3 Suspension modes SRAM AXS Powerpack |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Champion Black / Small / 29-inch | 196530175445 | 420862006 |
| Champion Black / Medium / 29-inch | 196530175452 | 420862008 |
| Champion Black / Large / 29-inch | 196530175469 | 420862010 |
| Champion Black / X-Large / 29-inch | 196530175476 | 420862012 |
