Scott Spark 900 Ultimate EVO AXS - 2022

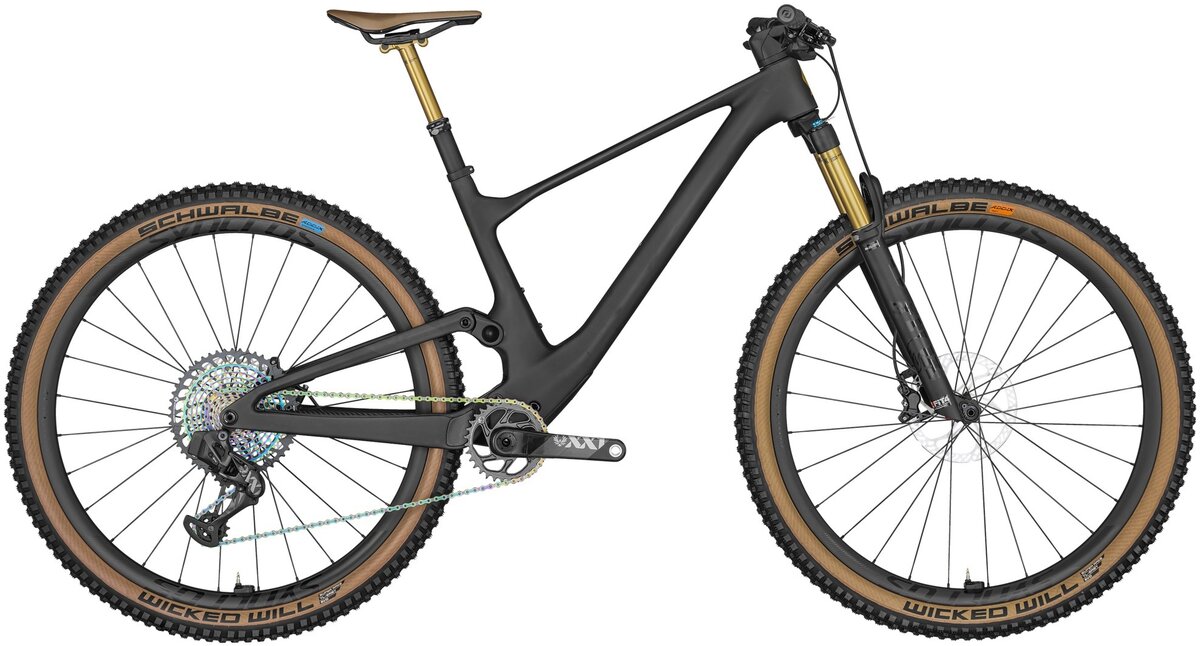

Scott Spark 900 Ultimate EVO AXS
  • Color: Black/Gold
$13,999.99
Color:
Black/Gold
Please select options
Sorry, this item is currently out of stock. Please call one of our locations for more information.
  Looking for financing options? We accept Klarna in store.

Details

When you think of the perfect mountain bike, what comes to mind? For us, it's the all new Spark 900 Ultimate EVO AXS. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.

KEY FEATURES
- Spark Carbon HMX SL Frame
- FOX 34 Float Factory 130mm Fork
- FOX Nude 5T EVOL, TwinLoc, 120mm
- SRAM XX Eagle AXS SL 12 Speed
- Trickstuff Piccola HD Disc Brakes
- Syncros Silverton 1.0S Wheels
- Schwalbe Wicked Will Tires
- FOX Dropper Post, Syncros CF Parts

Geometry

Sizes:
SmallMediumLargeX-Large
A HEAD TUBE ANGLE 65.8 ° 65.8 ° 65.8 ° 65.8 °
B HEAD TUBE LENGTH 90.0 MM 90.0 MM 105.0 MM 115.0 MM
C TOP TUBE HORIZONTAL 561.0 MM 589.0 MM 613.0 MM 641.0 MM
D STANDOVER HEIGHT 759.0 MM 767.0 MM 778.0 MM 801.0 MM
E BB OFFSET -43.5 MM -43.5 MM -43.5 MM -43.5 MM
F BB HEIGHT 331.5 MM 331.5 MM 331.5 MM 331.5 MM
G WHEEL BASE 1,145.0 MM 1,174.0 MM 1,205.0 MM 1,236.0 MM
I BB CENTER TO TOP OF SEATTUBE 415.0 MM 440.0 MM 490.0 MM 540.0 MM
J SEAT ANGLE 75.7 ° 75.9 ° 76.4 ° 76.7 °
K CHAINSTAY 437.5 MM 437.5 MM 437.5 MM 437.5 MM
L REACH 410.0 MM 440.0 MM 470.0 MM 500.0 MM
M STACK 607.5 MM 607.5 MM 617.7 MM 627.0 MM
N STEM LENGTH 50.0 MM 60.0 MM 60.0 MM 70.0 MM
0 TRAIL 107.0 MM 107.0 MM 107.0 MM 107.0 MM
P FORK LENGTH 540.0 MM 540.0 MM 540.0 MM 540.0 MM
Q MAXIMUM SEATPOST INSERTION 150.0 MM 175.0 MM 225.0 MM 275.0 MM
R CRANK LENGTH 170.0 MM 175.0 MM 175.0 MM 175.0 MM

Specs

Frame Spark Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline Lightest 120mm frame 1870g (w/shock)
Fork FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 120-80-Lockout / T165X45mm
Wheels Syncros Silverton 1.0S-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires Front: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Rear: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip
Bottom Bracket SRAM DUB PF 92 MTB Wide / shell 41x92mm
Crankset SRAM XX1 Eagle, Carbon crankarm, DUB / 55mm CL / 32T
Shifters SRAM Eagle AXS Rocker Controller
Rear Derailleur SRAM XX1 Eagle AXS / 12 Speed Wireless Electronic Shift System
Cassette/Freewheel SRAM CS XX1 XG1299 / 10-52 T
Chain SRAM CN XX1 Eagle
Brakes Trickstuff Piccola HD Carbon 4 Piston Disc
Rotors Trickstuff Dächle Ultra-Light / F&R 180mm
Handlebars Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 760mm, Syncros Pro lock-on grips
Headset Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Seatpost FOX Transfer Factory Dropper Post Kashima, 31.6mm / S & M size 125mm / L & XL size 150mm
Saddle Syncros Tofino Regular 1.0, Carbon rails
Pedals Sold separately
Accessories & Extras Remote system: SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes, SRAM AXS Powerpack, SRAM TyreWiz

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Black/Gold / Small 192820594200 286267006 SCO32186670S
Black/Gold / Medium 192820594217 286267008 SCO32447180M
Black/Gold / Large 192820594224 286267010 SCO32274495L
Black/Gold / X-Large 192820594231 286267012 SCO33303011L
