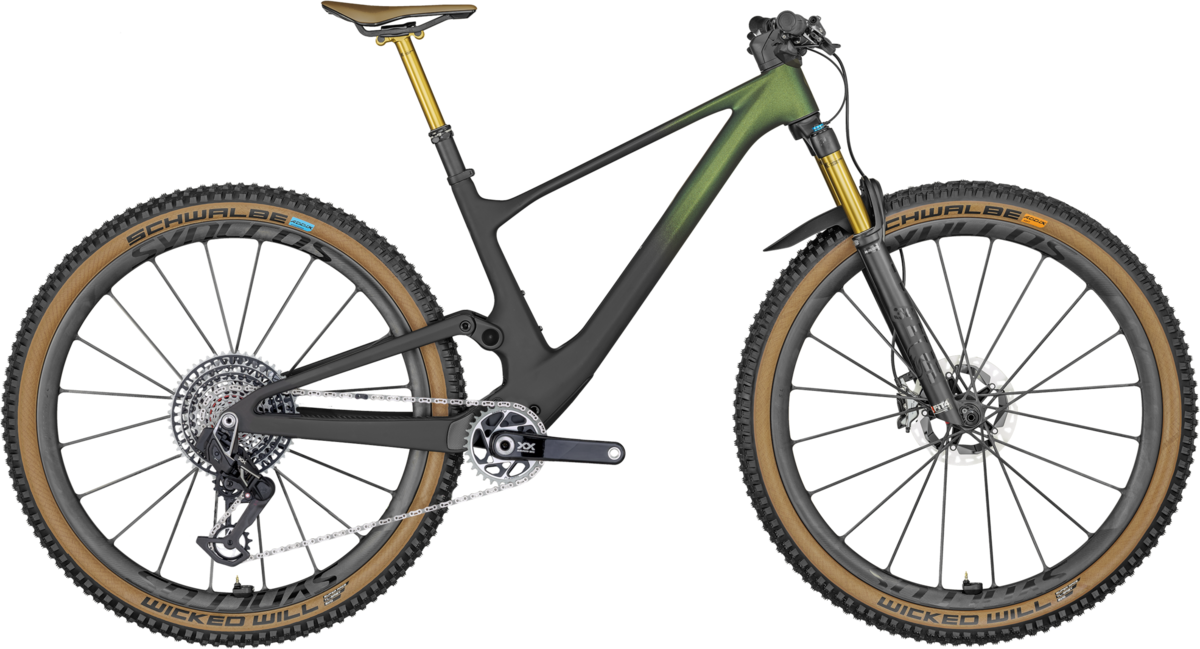

Scott Spark 900 Ultimate TR

Scott Spark 900 Ultimate TR
Color: Carbon Black
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently out of stock. Please call one of our locations for more information.

Details

When you think of the perfect mountain bike, what comes to mind? For us, it's the Spark 900 Ultimate. Why, you ask? Well, beyond the fact that it is fast, lightweight, and ultra-capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike. Please note that bike specifications are subject to change without prior notice.

Key Features

- Spark Carbon HMX Frame
- FOX 34 Float Factory 130mm Fork
- FOX Nude 5T EVOL, TwinLoc, 120mm
- SRAM XX SL Eagle AXS Transmission
- Shimano XTR 4 Piston Disc Brakes
- Syncros Silverton SL2 CF Wheels
- Schwalbe Wicked Will Tires
- FOX Dropper Post, Syncros CF Parts

Sizes:
Frame SizeSmallMediumLargeX-Large
Head tube angle 65.8 ° 65.8 ° 65.8 ° 65.8 °
Head tube length 90.0 mm 90.0 mm 105.0 mm 115.0 mm
Top tube horizontal 561.0 mm 589.0 mm 613.0 mm 641.0 mm
Standover height 759.0 mm 767.0 mm 778.0 mm 801.0 mm
BB offset -43.5 mm -43.5 mm -43.5 mm -43.5 mm
BB height 331.5 mm 331.5 mm 331.5 mm 331.5 mm
Wheel base 1,145.0 mm 1,174.0 mm 1,205.0 mm 1,236.0 mm
BB center to top of seattube 415.0 mm 440.0 mm 490.0 mm 540.0 mm
Seat angle 75.7 ° 75.9 ° 75.9 ° 76.7 °
Chainstay 437.5 mm 437.5 mm 437.5 mm 437.5 mm
Reach 410.0 mm 440.0 mm 470.0 mm 500.0 mm
Stack 607.5 mm 607.5 mm 617.7 mm 627.0 mm
Stem length 50.0 mm 60.0 mm 60.0 mm 70.0 mm
Trail 107.0 mm 107.0 mm 107.0 mm 107.0 mm
Entire Reach 540.0 mm 540.0 mm 540.0 mm 540.0 mm
Maximum Seatpost Insertion 150.0 mm 175.0 mm 225.0 mm 275.0 mm
Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm

Specs

Frame Spark Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 120-80-Lockout / T165X45mm
Wheels Syncros Silverton SL2-30 CL full Carbon F: 15x110mm R: 12x148mm / 30mm Tubeless ready rim DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Tires Front: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Rear: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip
Bottom Bracket SRAM DUB PF 92 MTB / shell 41x92mm
Crankset SRAM XX SL Eagle Transmission Carbon crankarm DUB / 55mm CL / 32T
Shifters SRAM Eagle AXS Rocker Controller
Rear Derailleur SRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Cassette/Freewheel SRAM XX SL Eagle XS 1299 Transmission 10-52
Chain SRAM CN XX SL Eagle Transmission
Brakes Shimano XTR M9120 4 Piston Disc
Rotors Shimano RT-MT900 CL / F&R 180mm
Handlebars Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Performance XC lock-on grips
Headset Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Saddle Syncros Tofino Regular 1.0 Carbon rails
Accessories & Extras SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes
SRAM AXS Powerpack
Syncros Eco Sealant
SRAM TyreWiz
Syncros Fork Fender
Transport Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon Black / Small / 29-inch 196530175872 420872006
Carbon Black / Medium / 29-inch 196530175889 420872008
Carbon Black / Large / 29-inch 196530175896 420872010
Carbon Black / X-Large / 29-inch 196530175902 420872012
