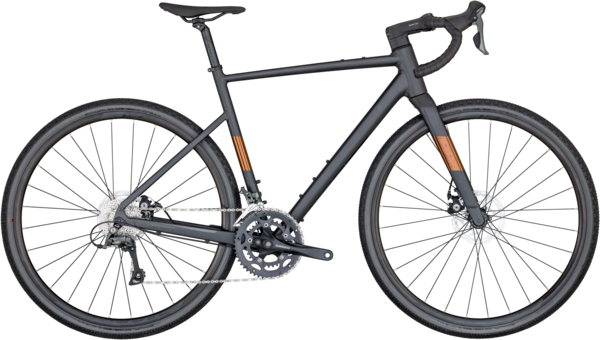

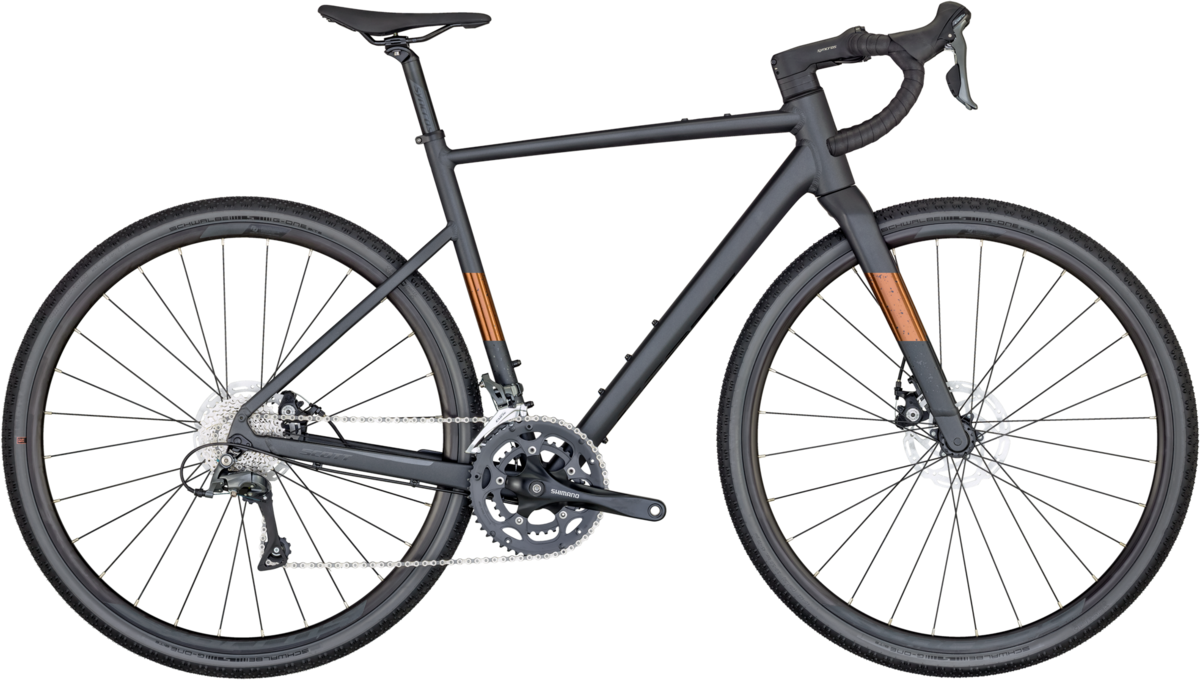

Scott Speedster Gravel 60
Details
The SCOTT Speedster Gravel 60 is your one-stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires, and fully internal cable routing make this a great option for those looking to take it off-road!
Please note that bike specifications are subject to change without prior notice
Key Features
- Speedster Gravel Disc Alloy Frame
- Speedster Gravel Alloy Disc Fork
- Shimano Claris Disc 16 Speed
- Syncros Race 24 Disc Wheels
- Schwalbe G-One Bite Tires
Max. System Weight 120 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
| Frame Size | XX-Small | X-Small | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|---|---|
| Head tube angle | 70.0 ° | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | 71.0 ° |
| Head tube length | 93.0 mm | 103.0 mm | 123.0 mm | 143.0 mm | 163.0 mm | 183.0 mm | 203.0 mm |
| Top tube horizontal | 512.3 mm | 523.0 mm | 536.5 mm | 556.5 mm | 571.2 mm | 581.2 mm | 594.2 mm |
| Standover height | 747.0 mm | 762.0 mm | 786.0 mm | 806.0 mm | 825.0 mm | 844.0 mm | 869.0 mm |
| BB offset | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm |
| BB height | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm |
| Wheel base | 1,019.5 mm | 1,026.9 mm | 1,037.7 mm | 1,044.9 mm | 1,056.4 mm | 1,067.0 mm | 1,071.3 mm |
| BB center to toptube center | 430.0 mm | 450.0 mm | 480.0 mm | 500.0 mm | 520.0 mm | 540.0 mm | 570.0 mm |
| BB center to top of seattube | 470.0 mm | 490.0 mm | 520.0 mm | 540.0 mm | 560.0 mm | 580.0 mm | 610.0 mm |
| Seat angle | 75.0 ° | 74.5 ° | 74.0 ° | 73.0 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Chainstay | 435.0 mm | 435.0 mm | 435.0 mm | 439.0 mm | 439.0 mm | 439.0 mm | 439.0 mm |
| Reach | 374.0 mm | 378.0 mm | 382.0 mm | 387.0 mm | 392.0 mm | 396.0 mm | 403.0 mm |
| Stack | 519.0 mm | 528.4 mm | 547.2 mm | 570.0 mm | 588.9 mm | 607.8 mm | 626.8 mm |
| Stem length | 73.0 mm | 83.0 mm | 93.0 mm | 103.0 mm | 103.0 mm | 113.0 mm | 113.0 mm |
Specs
| Frame | Speedster Gravel Disc / D.Butted 6061 Alloy SCOTT Gravel geometry / Replaceable Derailleur Hanger Internal cable routing Syncros fender kit ready |
|---|---|
| Fork | Speedster Gravel Alloy Flatmount Disc 1 1/4"-1 1/2" Excentric Alloy steerer |
| Rims | Syncros Race 24 Disc 28 Front / 28 Rear |
| Hubs |
Front: Formula Team II CL Disc 28 H Rear: Formula Team II CL Disc 28 H |
| Spokes | Black 2mm |
| Tires | Schwalbe G-One Bite Performance 700x40C |
| Bottom Bracket | Shimano BB-UN300 |
| Crankset | Shimano Claris FC-RS200 50x34 T |
| Shifters | Shimano Claris ST-R2000 Dual control 16 Speed |
| Front Derailleur | Shimano Claris FD-R2000 |
| Rear Derailleur | Shimano Claris RD-R2000-GS 16 Speed |
| Cassette/Freewheel | Shimano CS-HG50 8 Speed 11-32 T |
| Chain | KMC X8 |
| Brakes | Tektro SCD-550 Mech. Disc |
| Rotors | Tektro TR-160-35 rotor 160/F and 160/R |
| Handlebars | Syncros Creston 2.0 X Alloy 31.8mm |
| Stem | Syncros RR2.5 1 1/4" / four Bolt 31.8mm |
| Headset | Acros AIF-1133 |
| Seatpost | Syncros RR2.5 27.2/350mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Mastaphora Grey / XX-Small / 700c | 192820876276 | 293265047 |
| Mastaphora Grey / X-Small / 700c | 192820876283 | 293265049 |
| Mastaphora Grey / Small / 700c | 192820876290 | 293265052 |
| Mastaphora Grey / Medium / 700c | 192820876306 | 293265054 |
| Mastaphora Grey / Large / 700c | 192820876313 | 293265056 |
| Mastaphora Grey / X-Large / 700c | 192820876320 | 293265058 |
| Mastaphora Grey / XX-Large / 700c | 192820876337 | 293265061 |
