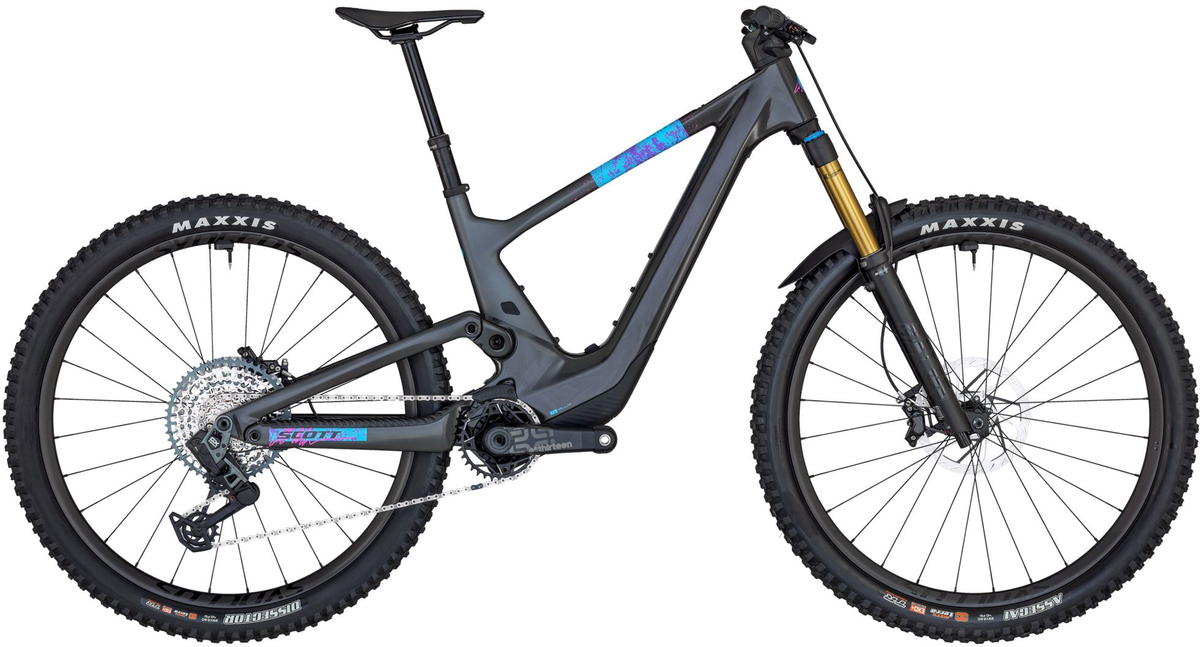

Scott Voltage eRIDE 900 Tuned

Scott Voltage eRIDE 900 Tuned
  • Color: Black/Blue Tuned
$10,999.99
Color: Black/Blue Tuned
Size: Select size
Please select options Unavailable
Sorry, this item is currently out of stock. Please call one of our locations for more information.

Details

KEY FEATURES:
- Voltage eRIDE Carbon HMF Frame
- FOX 36 Float Factory Grip 2 160mm
- FOX Float X NUDE, TracLoc, 155mm
- SRAM GX AXS Transmission 12Sp
- SRAM Code 4 Piston Disc Brakes
- Maxxis Foldable Tires

Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight, and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE over delivers trail after trail... after trail.

Please note that bike specifications are subject to change without prior notice

Geometry

Sizes:
SMLXL
A HEAD TUBE ANGLE 63.9 ° 63.9 ° 63.9 ° 63.9 °
B HEAD TUBE LENGTH 110.0 MM 110.0 MM 120.0 MM 130.0 MM
C TOP TUBE HORIZONTAL 580.2 MM 600.0 MM 629.9 MM 659.8 MM
D STANDOVER HEIGHT 765.0 MM 765.0 MM 772.0 MM 788.0 MM
E BB OFFSET 27.4 MM 27.5 MM 27.4 MM 27.3 MM
F BB HEIGHT 349.6 MM 349.5 MM 349.6 MM 349.7 MM
G WHEEL BASE 1,232.8 MM 1,252.6 MM 1,284.8 MM 1,316.9 MM
H BB CENTER TO TOPTUBE CENTER
I BB CENTER TO TOP OF SEATTUBE 404.6 MM 424.5 MM 449.6 MM 479.7 MM
J SEAT ANGLE 77.1 ° 77.1 ° 77.1 ° 77.1 °
K CHAINSTAY 455.0 MM 455.0 MM 455.0 MM 455.0 MM
L REACH 437.4 MM 457.2 MM 485.0 MM 512.7 MM
M STACK 622.3 MM 622.4 MM 631.3 MM 640.2 MM
N STEM LENGTH 40.0 MM 40.0 MM 50.0 MM 50.0 MM
0 TRAIL 135.7 MM 135.7 MM 135.7 MM 135.7 MM
P FORK LENGTH 571.0 MM 571.0 MM 571.0 MM 571.0 MM
Q MAXIMUM SEATPOST INSERTION 190.0 MM 210.0 MM 235.0 MM 265.0 MM
R CRANK LENGTH 170.0 MM 170.0 MM 175.0 MM 175.0 MM

Specs

Frame Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready
Fork FOX 36 Float Factory Grip 2 Air / Kashima HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 160mm travel
Rear Shock FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion Kashima / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 155-100-Climb / T185X55mm
Wheels Syncros Revelstoke 1.0-30 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss Ratchet Hubs / XD Driver SRAM TyreWiz / Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Tires Maxxis Assegai / 2.6" / 60TPI Foldable Tubeless Ready / EXO+ 3C maxx Terra
Crankset e*thirteen / e*spec Race Carbon / 34T
Chainrings Scott custom spider / SRAM Eagle Transmission 34T chainring
Shifters SRAM GX Eagle AXS Rocker Controller
Rear Derailleur SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Cassette/Freewheel SRAM GX Eagle XS 1275 Transmission 10-52
Chain SRAM CN GX Eagle Transmission
Brakes SRAM Code Silver Stealth 4-Piston Disc
Rotors SRAM HS2 Rotors F&R 200mm
Handlebars Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips
Headset Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
Saddle Syncros Tofino 1.5 Regular Titanium rails
Accessories & Extras SRAM AXS Extension Cord, SRAM TyreWiz, Syncros Fork Fender
Motor TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery TQ Internal 360Wh
Controller/Display TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app
Charger TQ 100-240V-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Blue Tuned / Small 192820877846 293290006
Black/Blue Tuned / Medium 192820877853 293290008
Black/Blue Tuned / Large 192820877860 293290010
Black/Blue Tuned / X-Large 192820877877 293290012
