Trek Fuel MX 9.8 Eagle 90 Gen 7
This item is currently not available.
Details
Fuel MX 9.8 Eagle 90 is a chaos-craving carbon trail bike built for hitting bonus features. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical SRAM Eagle 90 transmission gives you reliable shifts without the fuss of electronics, and 4-piston SRAM Maven Bronze brakes deliver power you can count on.

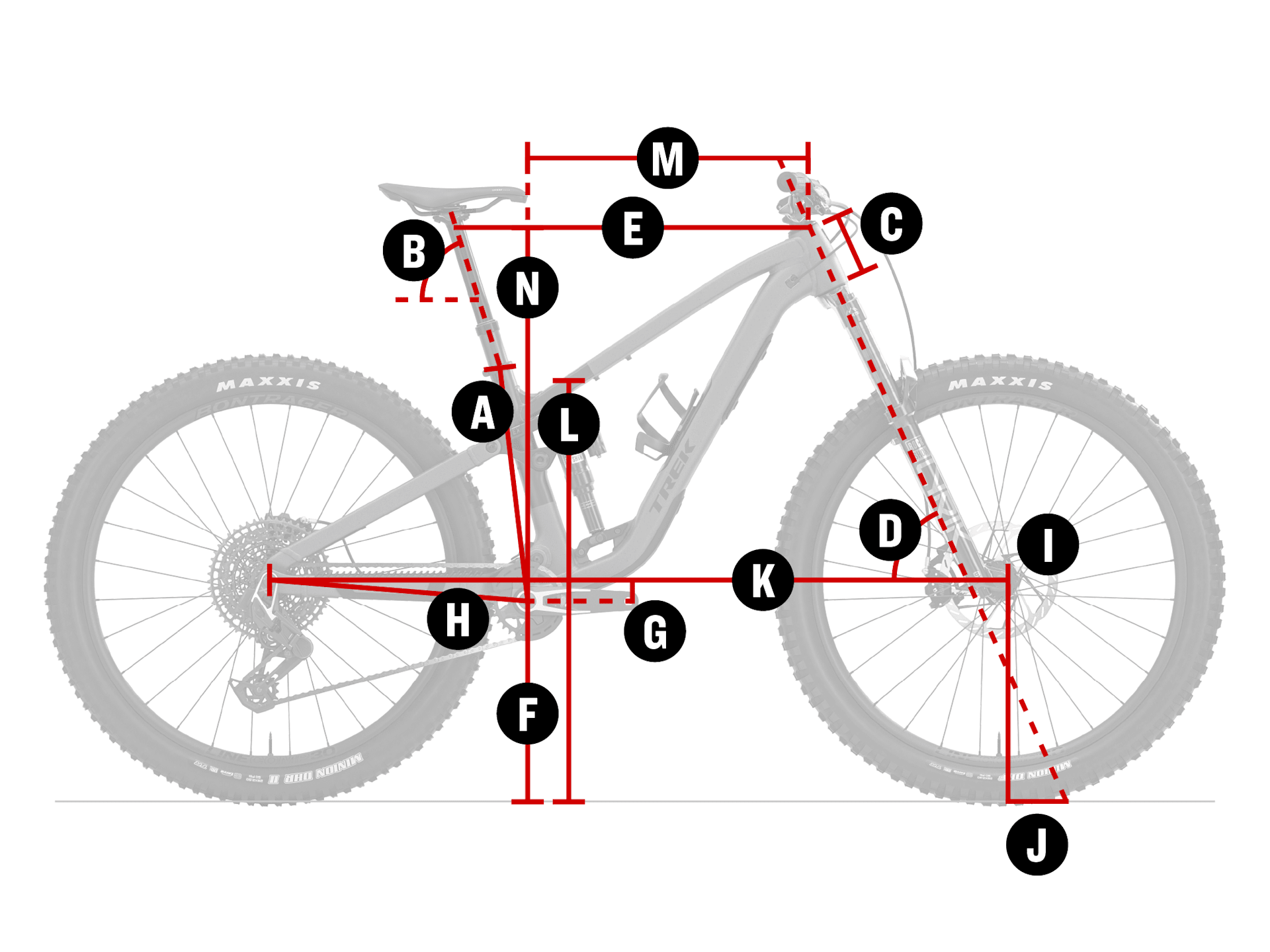

| Frame size number | 15.5" | 17.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|
| Frame size letter | S | M | L | XL | XXL |
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| A — Seat tube | 37 | 40 | 42 | 45.5 | 47.5 |
| B — Seat tube angle | 72.3° | 72.3° | 72.3° | 72.3° | 72.3° |
| Effective seat tube angle | 78.3° | 77.5° | 77.0° | 76.6° | 76.1° |
| C — Head tube length | 9.5 | 11 | 12.5 | 14 | 15.5 |
| D — Head angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| E — Effective top tube | 54.9 | 58.4 | 61.8 | 65.2 | 68.2 |
| F — Bottom bracket height | 34.3 | 34.3 | 34.3 | 34.3 | 34.3 |
| G — Bottom bracket drop | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| H — Chainstay length | 43.4 | 43.4 | 43.9 | 44.4 | 44.9 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| K — Wheelbase | 119.1 | 122.8 | 126.4 | 130.1 | 133.2 |
| L — Standover | 74.5 | 74.7 | 75.4 | 76 | 76.9 |
| M — Frame reach | 42.6 | 45.6 | 48.2 | 50.7 | 52.7 |
| N — Frame stack | 61.3 | 62.7 | 64.1 | 65.4 | 66.8 |
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
Specs
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
|---|---|
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel |
| Rear Shock | Fox Factory Float X, 205mm x 60mm |
| Wheels |
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5'' |
| Tires |
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' |
| Crankset | SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette/Freewheel | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Rear Derailleur | SRAM Eagle 90, T-Type |
| Rotors | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Handlebars | Race Face ERA, carbon, 35mm, 40mm rise, 800mm width |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Pedals | Sold separate |
| Battery | SRAM AXS Battery Pack |
* Subject to change without notice.
