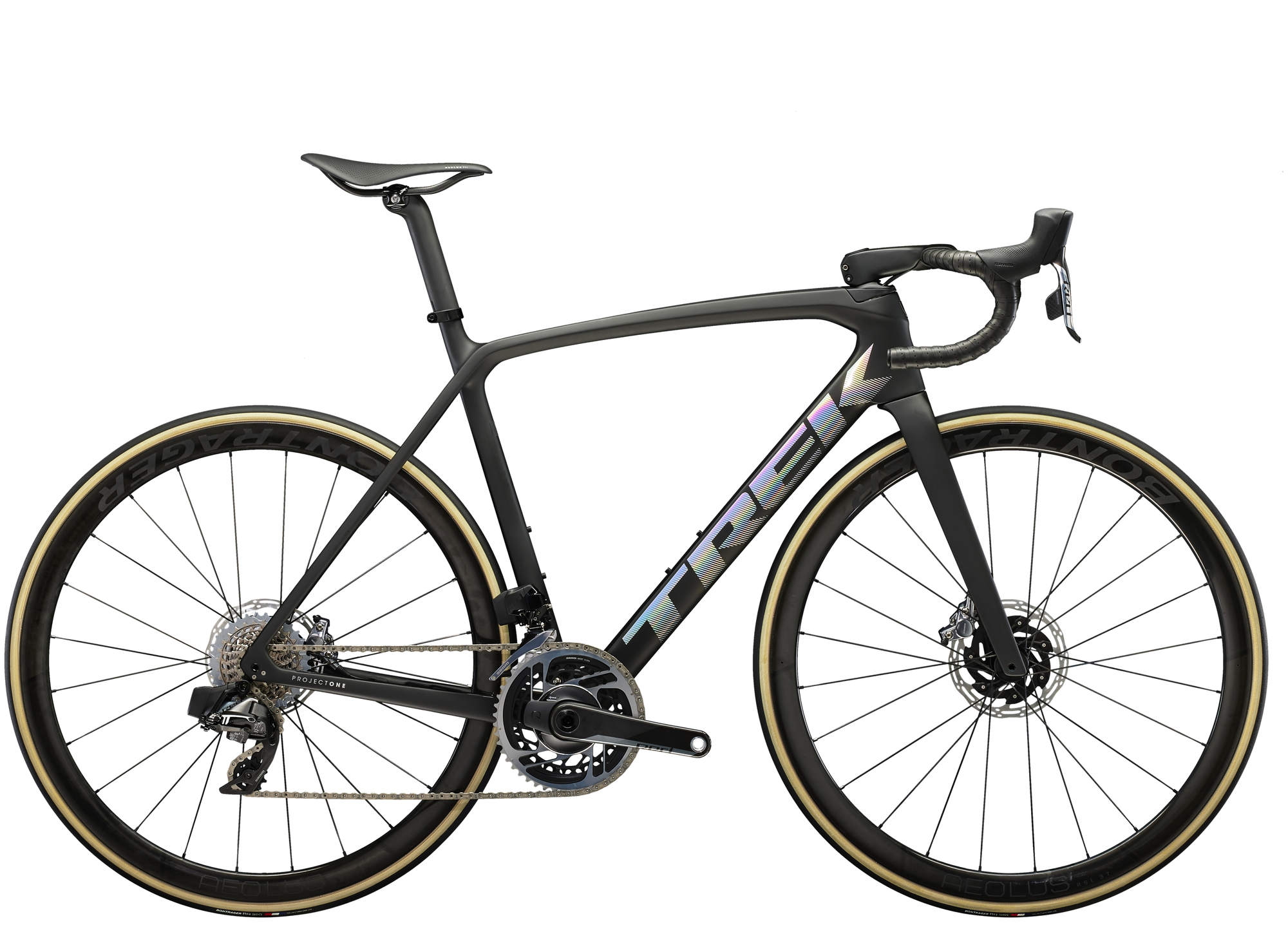

Trek Émonda SLR 9 AXS - 2023
$13,199.99
Details
Émonda SLR 9 Disc AXS is an ultralight and aerodynamic carbon road bike designed to be the fastest climbing bike we've ever made. This race bike offers Émonda’s legendary ride quality and lightweight design with more speed than ever before, thanks to aero tubes built from our lightest OCLV layup ever. As an official Trek-Segafredo race team replica bike, you get premium features like ultralight wheels and an advanced SRAM RED AXS wireless electronic drivetrain with power meter to push your performance to the limit.
- This insanely fast climbing bike is aero, weighs in at less than 700g, and rides like a dream
- SRAM's top-tier RED AXS drivetrain offers fully wireless shifting that's precise, programmable, and lightweight
- 800 Series OCLV Carbon is intensely light and meticulously crafted for next-level performance
- The Aeolus RSL 37 wheels are designed for climbing, and were developed alongside Émonda
- Make it yours: it's fully customizable through Project One
| Frame size number | 47 cm | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 10 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| D — Head angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| E — Effective top tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 | 6.8 |
| H — Chainstay length | 41 | 41 | 41 | 41 | 41 | 41.1 | 41.1 | 41.2 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 |
| J — Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| K — Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101 |
| L — Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| M — Frame reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| N — Frame stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62 |
| Stem length | 80 | 80 | 90 | 90 | 100 | 110 | 110 | 110 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70 | 73 | 75 | 77 | 79 |
| Saddle rail height min (w/tall mast) | 59 | 62 | 65 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 |
152 - 158 cm |
71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Fork | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
|---|---|
| Chain | SRAM RED D1, 12 speed |
| Frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Tires | Pirelli P Zero Race, 127 tpi, 700x26c |
| Brakes | SRAM Red eTap AXS hydraulic disc, flat mount |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Saddle | Aeolus P2 RSL, carbon rails, 155mm width |
| Wheels | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12 front, 142x12 rear |
| Crankset | SRAM RED AXS w/ power meter, 48/35, DUB, 170mm length |
| Seatpost | Bontrager carbon seatmast cap, 20mm offset, short length |
| Shifters | SRAM RED eTap AXS, 12 speed // SRAM RED eTap AXS, 12 speed |
| Handlebars | Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 40cm width, 90mm stem length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Rear Derailleur | SRAM RED eTap AXS, 36T max cog |
| Front Derailleur | SRAM RED eTap AXS, braze-on |
| Cassette/Freewheel | SRAM XG-1290, 10-33, 12 speed |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Deep Smoke / 47cm / 700c | 601479170104 | 5282339 | EMO25535277E |
| Metallic Red Smoke to Red Carbon Smoke / 47cm / 700c | 601479189021 | 5282371 | EMO48754670E |
| Team Replica: Azure / 47cm / 700c | 601479189229 | 5282355 | EMO32861260E |
| Team Replica: Viper Red / 47cm / 700c | 601479189281 | 5282347 | EMO35585588D |
| Team Replica: Viper Red / 50cm / 700c | 601479189182 | 5282348 | EMO35681891D |
| Team Replica: Azure / 50cm / 700c | 601479189120 | 5282356 | EMO32992255E |
| Metallic Red Smoke to Red Carbon Smoke / 50cm / 700c | 601479189403 | 5282372 | EMO4888612E |
| Deep Smoke / 50cm / 700c | 601479170180 | 5282340 | EMO25381095E |
| Deep Smoke / 52cm / 700c | 601479170142 | 5282341 | EMO25416408E |
| Metallic Red Smoke to Red Carbon Smoke / 52cm / 700c | 601479188963 | 5282373 | EMO48213063E |
| Team Replica: Azure / 52cm / 700c | 601479189328 | 5282357 | EMO32253242E |
| Team Replica: Viper Red / 52cm / 700c | 601479189267 | 5282349 | EMO35904194D |
| Team Replica: Viper Red / 54cm / 700c | 601479189069 | 5282350 | EMO35437160D |
| Team Replica: Azure / 54cm / 700c | 601479189083 | 5282358 | EMO32526172E |
| Metallic Red Smoke to Red Carbon Smoke / 54cm / 700c | 601479189045 | 5282374 | EMO48579083E |
| Deep Smoke / 54cm / 700c | 601479170128 | 5282342 | EMO25842408E |
| Deep Smoke / 56cm / 700c | 601479170302 | 5282343 | EMO25565499E |
| Metallic Red Smoke to Red Carbon Smoke / 56cm / 700c | 601479189106 | 5282375 | EMO48365784E |
| Team Replica: Azure / 56cm / 700c | 601479189342 | 5282359 | EMO32152775E |
| Team Replica: Viper Red / 56cm / 700c | 601479188987 | 5282351 | EMO35123675D |
| Team Replica: Viper Red / 58cm / 700c | 601479189366 | 5282352 | EMO35272504D |
| Team Replica: Azure / 58cm / 700c | 601479189380 | 5282360 | EMO32349233E |
| Metallic Red Smoke to Red Carbon Smoke / 58cm / 700c | 601479189168 | 5282376 | EMO48676433E |
| Deep Smoke / 58cm / 700c | 601479170326 | 5282344 | EMO25349901E |
| Deep Smoke / 60cm / 700c | 601479170241 | 5282345 | EMO25420431E |
| Metallic Red Smoke to Red Carbon Smoke / 60cm / 700c | 601479208920 | 5282377 | EMO48847360E |
| Team Replica: Azure / 60cm / 700c | 601479189144 | 5282361 | EMO32893811E |
| Team Replica: Viper Red / 60cm / 700c | 601479189007 | 5282353 | EMO35522118D |
| Team Replica: Viper Red / 62cm / 700c | 601479189205 | 5282354 | EMO35950976D |
| Team Replica: Azure / 62cm / 700c | 601479189243 | 5282362 | EMO32359866E |
| Metallic Red Smoke to Red Carbon Smoke / 62cm / 700c | 601479209163 | 5282378 | EMO48297790E |
| Deep Smoke / 62cm / 700c | 601479189304 | 5282346 | EMO25553450E |
