Trek Supercaliber 9.9 XTR
Details
Supercaliber 9.9 is the fastest, lightest, and most capable cross country race bike we make—and that's exactly why it's Trek Factory Racing's World Cup bike of choice. The exclusive IsoStrut top tube shock is the cornerstone of Supercaliber's efficient suspension system, giving you a fast and light ride that charges through rugged terrain at breakneck speed.
- Supercaliber 9.9 is the ultimate XC race bike, one you'll see taking top spots during the World Cup
- Our exclusive IsoStrut shock provides tunable, damped suspension for a smooth and efficient ride
- Pivotless seat stays save on weight and actively bend to help soak up trail chatter
- The OCLV Carbon RSL integrated bar/stem is ultralight, ultra-comfortable, and it looks awesome
- Wider Kovee RSL wheels provide better tire support so you can run lower pressure and get more traction
| Frame size number | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Frame size letter | S | M | ML | L | XL |
| Wheel size | 29" | 29" | 29" | 29" | 29" |

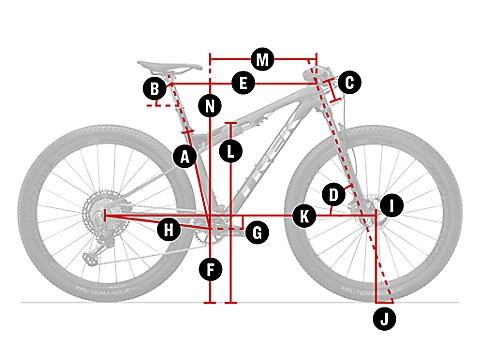

| A — Seat tube | 39.4 | 41.9 | 44.5 | 47 | 50.8 |
| B — Seat tube angle | 70.0° | 70.5° | 70.5° | 71.0° | 71.0° |
| Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 9 | 9 | 9 | 9 | 10.5 |
| D — Head angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| E — Effective top tube | 56.5 | 59.5 | 61 | 62.5 | 65.9 |
| F — Bottom bracket height | 32 | 32 | 32 | 32 | 32 |
| G — Bottom bracket drop | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| H — Chainstay length | 43 | 43 | 43 | 43 | 43 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| K — Wheelbase | 107.9 | 110.6 | 112.1 | 113.6 | 117.2 |
| L — Standover | 75 | 76 | 76 | 78.7 | 78.7 |
| M — Frame reach | 39.5 | 42.5 | 44 | 45.5 | 48.5 |
| N — Frame stack | 59.4 | 59.4 | 59.4 | 59.4 | 60.8 |
| Size | Rider Height | Inseam |
|---|---|---|
| Small | 155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| Medium | 165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| Medium/Large | 173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| Large | 177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| X-Large | 188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| XX-Large | 195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
Specs
| Fork | Fox Factory 32 Step-Cast, Float EVOL air spring, FIT4 2-position remote damper, tapred steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 100mm travel |
|---|---|
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Frame | OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel |
| Tires | Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20'' |
| Brakes | Shimano XTR M9100 hydraulic disc |
| Rotors | Shimano MT900, 160mm, centerlock |
| Saddle | Bontrager Verse Pro, carbon rails, 145mm width |
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Crankset | E*thirteen XCX Race, carbon, 34T ring, Boost, 170mm length |
| Seatpost | Fox Transfer SL, 100mm travel, internal routing, 31.6mm |
| Shifters | Shimano XTR M9100, 12 speed |
| Handlebars | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length |
| Rear Shock | Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm |
| Tape/Grips | ESI Chunky |
| Bottom Bracket | e*thirteen BB20-92 |
| Rear Derailleur | Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
| Cassette/Freewheel | Shimano XTR M9101, 10-51, 12 speed |
* Subject to change without notice.
