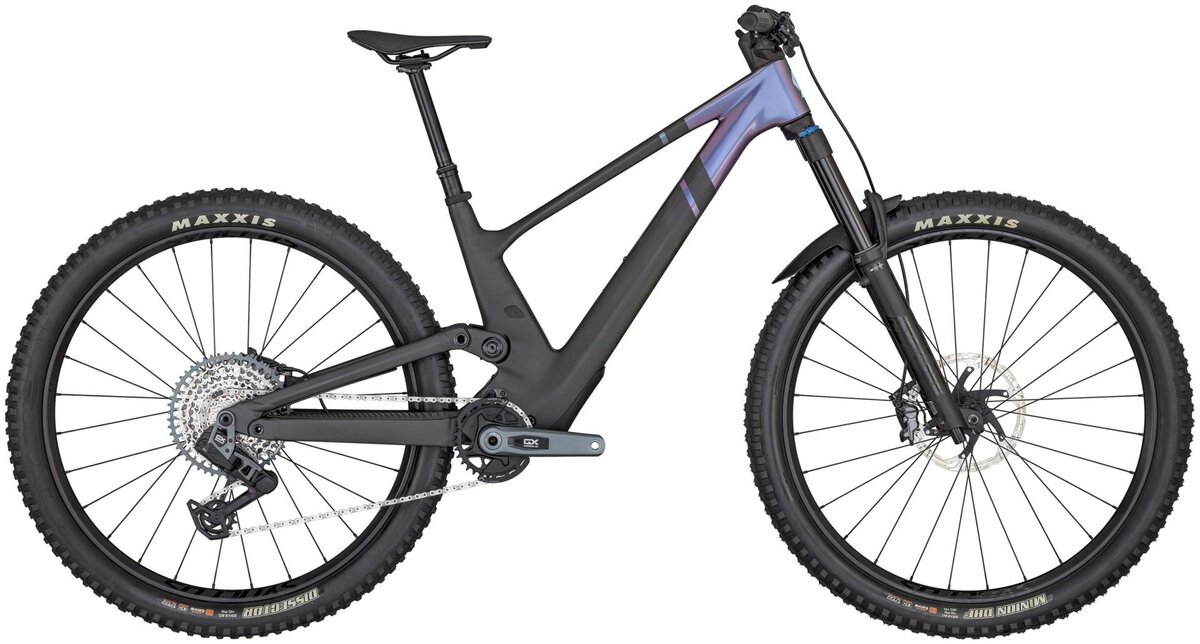

Scott Contessa Genius ST 910 TR
$7,299.99
Details
Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
KEY FEATURES
- Genius Carbon HMF-Alloy Frame
- FOX 36 Performance Elite Grip2 160mm Fork
- FOX Float X Nude, TracLoc, 150mm
- SRAM GX Eagle AXS Transmission
- Shimano XT 4 Piston Disc Brakes
- Syncros Revelstoke 2.0 TR Wheels
- Maxxis Foldable Tires
- Syncros Dropper Post and CF parts
| SIZE | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A - Head Tube Angle (-0.6° Headset Setting) | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
| B - Head Tube Length (mm) | 90 | 100 | 120 | 135 |
| C - Top Tube Horizontal (mm) | 570.1 | 602.2 | 631.3 | 659.3 |
| D - Standover Height (mm) | 728.5 | 738.5 | 753.5 | 768.5 |
| E - BB Offset (mm) | -33 | -33 | -33 | -33 |
| F - BB Height (mm) | 342.5 | 342.5 | 342.5 | 342.5 |
| G - Wheel Base (mm) | 1195 | 1229 | 1263 | 1294 |
| H - BB Center To Toptube Center (mm) | ||||
| I - BB Center To Top Of Seattube (mm) | 380 | 410 | 440 | 470 |
| J - Seat Angle (°) | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
| K - Chainstay (mm) | 440 | 440 | 440 | 440 |
| L - Reach (mm) | 430 | 460 | 485 | 510 |
| M - Stack (mm) | 617 | 626.1 | 644.2 | 657.8 |
| N - Stem Length (mm) | 40 | 40 | 40 | 40 |
| O - Trail (mm) | 125.8 | 125.8 | 125.8 | 125.8 |
| P - Fork Length (mm) | 571 | 571 | 571 | 571 |
| Q - Maximum Seatpost Insertion (mm) | 173 | 204 | 234 | 265 |
| R - Crank Length (mm) | 170 | 170 | 170 | 170 |
Specs
| Frame | Genius Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | FOX 36 Float Performance Elite Grip 2 Air HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 160mm travel |
| Rear Shock | FOX Float X NUDE PE EVOL Piggy Back Trunnion SCOTT custom w. travel / geo adj. 3 modes: Climbing-Traction Control-Descend Custom large air volume / Comp & Reb. Adj. Travel 150-100-Climbing / T185X55mm |
| Wheels | Syncros Revelstoke 2.0 6 Bolt F: 15x110mm R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools |
| Tires |
Front: Maxxis Minion DHF / 2.6" / 120TPI Foldable Tubeless Ready / EXO 3C maxx Terra Rear: Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra |
| Brakes | Shimano XT M8120 4 Piston Disc |
| Crankset | SRAM GX Eagle Transmission Bash guard / DUB / 55mm CL / 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Shifters | SRAM GX Eagle AXS Rocker Controller |
| Cassette/Freewheel | SRAM GX Eagle XS 1275 Transmission 10-52 |
| Rear Derailleur | SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Rotors | Shimano SM-RT76 / 6 Bolt / 203/F and 180/R |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Handlebars | Syncros Hixon iC Carbon Size S & M 15mm rise / Size L 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips |
| Chain | SRAM CN GX Eagle Transmission |
| Seatpost | Syncros Duncan Dropper Post 1.5 31.6mm / S size 140mm / M size 160mm L size 170mm |
| Saddle | Syncros Savona 2.0 V-Concept CrMo rails |
| Pedals | Sold Seperately |
| Accessories & Extras |
TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes SRAM AXS Powerpack Syncros Fork Fender |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Purple/Black / Small | 196530174837 | 420649006 |
| Purple/Black / Medium | 196530174844 | 420649008 |
