Details

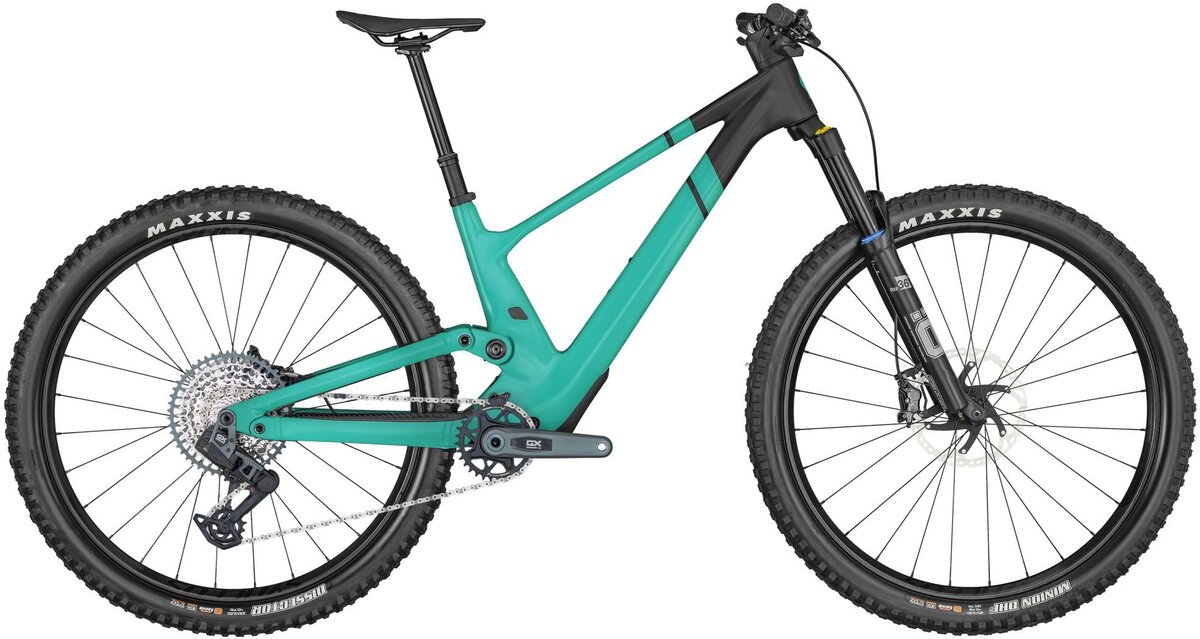

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
KEY FEATURES
- Genius Carbon HMF-Alloy Frame
- FOX 36 P. Elite Grip2 160mm
- FOX FLOAT X Nude, TracLoc, 150mm
- SRAM GX Eagle AXS Transmission
- Shimano XT 4 Piston Disc Brakes
- Syncros Revelstoke 2.0 TR Wheels
- Maxxis Foldable Tires
- Syncros Dropper Post, Syncros CF Parts
SIZE | Small | Medium | Large | X-Large |
---|---|---|---|---|
A - Head Tube Angle (°) | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
B - Head Tube Length (mm) | 90 | 100 | 120 | 135 |
C - Top Tube Horizontal (mm) | 570.1 | 602.2 | 631.3 | 659.3 |
D - Standover Height (mm) | 728.5 | 738.5 | 753.5 | 768.5 |
E - BB Offset (mm) | -33 | -33 | -33 | -33 |
F - BB Height (mm) | 342.5 | 342.5 | 342.5 | 342.5 |
G - Wheel Base (mm) | 1195 | 1229 | 1263 | 1294 |
H - BB Center To Toptube Center (mm) | ||||
I - BB Center To Top Of Seattube (mm) | 380 | 410 | 440 | 470 |
J - Seat Angle (°) | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
K - Chainstay (mm) | 440 | 440 | 440 | 440 |
L - Reach (mm) | 430 | 460 | 485 | 510 |
M - Stack (mm) | 617 | 626.1 | 644.2 | 657.8 |
N - Stem Length (mm) | 40 | 40 | 40 | 40 |
O - Trail (mm) | 125.8 | 125.8 | 125.8 | 125.8 |
P - Fork Length (mm) | 571 | 571 | 571 | 571 |
Q - Maximum Seatpost Insertion (mm) | 173 | 204 | 234 | 265 |
R - Crank Length (mm) | 170 | 170 | 170 | 170 |
Specs
Frame | Genius Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
---|---|
Fork | Ohlins RXF36 m.2 Air TTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle 44mm offset / tapered steerer 160mm travel |
Rear Shock | FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion SCOTT custom w. travel / geo adj. 3 modes: Climb-Traction Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 150-100-Climb / T185X55mm |
Wheels | Syncros Revelstoke 2.0 6 Bolt F: 15x110mm R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools |
Tires |
Front: Maxxis Minion DHF / 2.6" / 120TPI Foldable Tubeless Ready / EXO 3C maxxTerra Rear: Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxxTerra |
Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
Crankset | SRAM GX Eagle Transmission Bash guard / DUB / 55mm CL / 32T |
Shifters | SRAM GX Eagle AXS Rocker Controller |
Rear Derailleur | SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
Cassette/Freewheel | SRAM GX Eagle XS 1275 Transmission 10-52 |
Chain | SRAM CN GX Eagle Transmission |
Brakes | Shimano XT M8120 4 Piston Disc |
Rotors | Shimano SM-RT76 / 6 Bolt / 203/F and 180/R |
Handlebars | Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm |
Tape/Grips | Syncros Endurance lock-on grips |
Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M&L size 170mm / XL size 200mm |
Saddle | Syncros Tofino 2.0 Regular CRMO rails |
Pedals | Sold Separately |
Accessories & Extras | TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Black/Mint Green / Small | 196530174998 | 420647006 |
Black/Mint Green / Medium | 196530175001 | 420647008 |
Black/Mint Green / Large | 196530175018 | 420647010 |
Black/Mint Green / X-Large | 196530175025 | 420647012 |
